(Door / Hatch) - Service Information (4 Of 4)
>>
Fuel Lid Opener Switch
>>
Components [10/2020 - ]
Components [10/2020 - ]

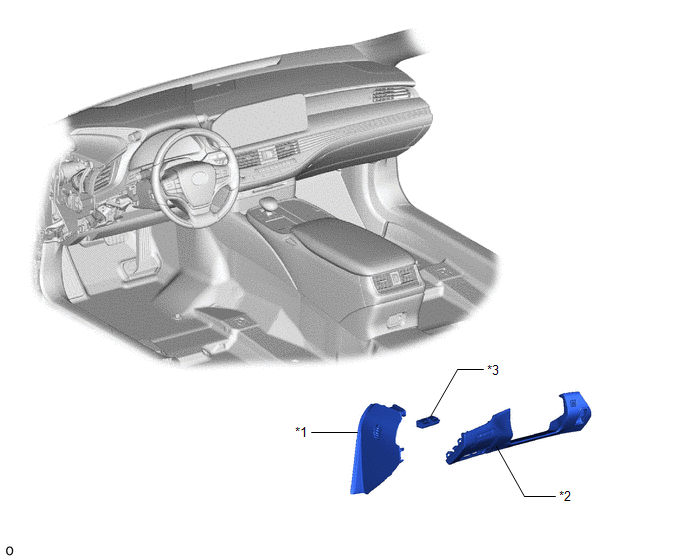

Fig 1: Fuel Lid Opener Switch Replacement Components [10/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INSTRUMENT SIDE PANEL LH
*2
LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
*3
TRUNK AND FUEL SWITCH ASSEMBLY
-
-
