Fuel Lid Opener Switch
>>
Components [10/2017 - 10/2020]
Components [10/2017 - 10/2020]

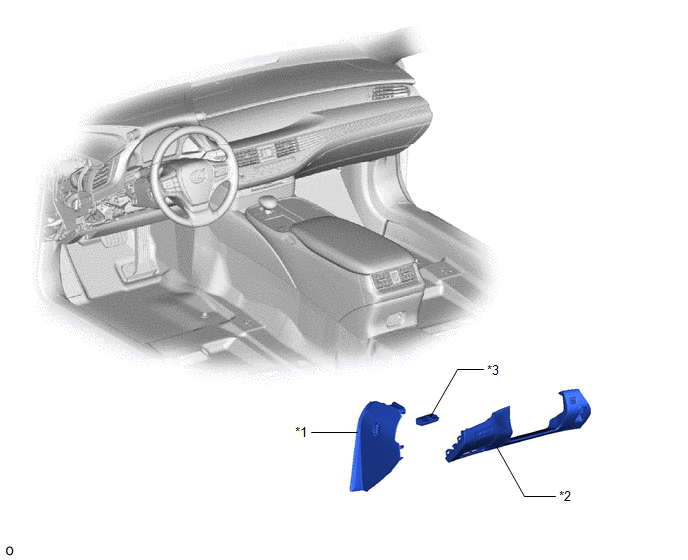

Fig 1: Fuel Lid Opener Switch Replacement Components [10/2017 - 10/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INSTRUMENT SIDE PANEL LH
*2
LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
*3
TRUNK AND FUEL SWITCH ASSEMBLY
-
-
