Components [10/2020 - 11/2021]

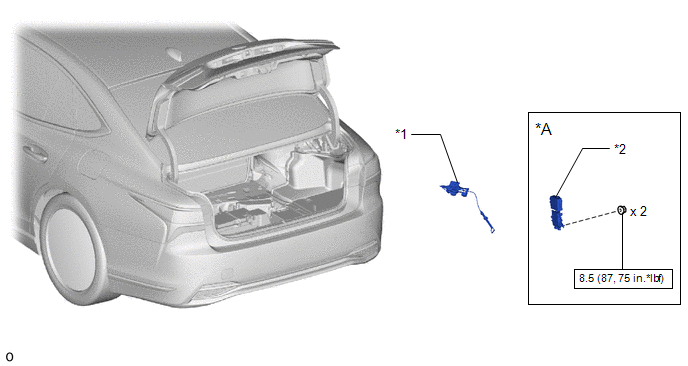

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components With Torque Specifications [10/2020 - 11/2021]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Advanced Park | - | - |
| *1 | FUEL LID LOCK WITH MOTOR ASSEMBLY | *2 | PARKING BRAKE ECU ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
