Components [10/2017 - ]

Fig 1: Rear Door Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

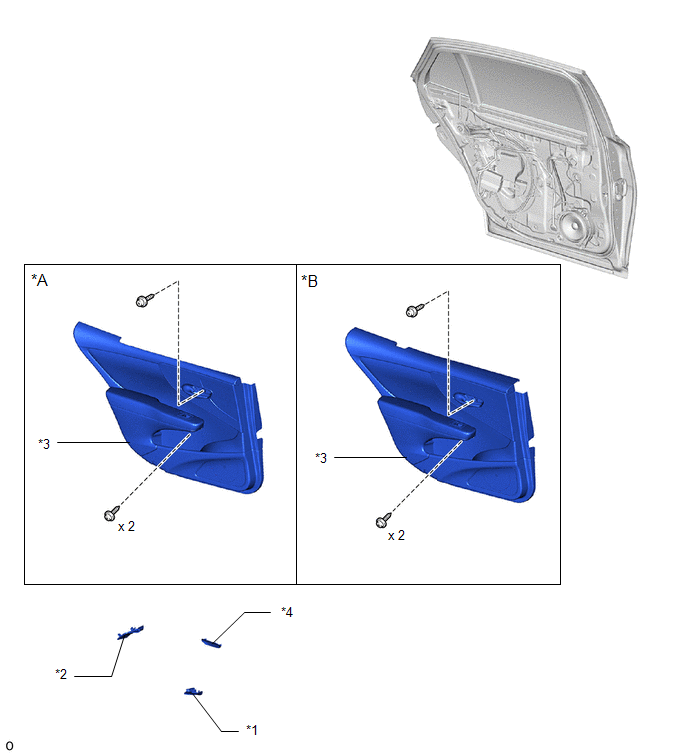

Fig 2: Rear Door Replacement Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Rear Door Sunshade	*B	w/o Rear Door Sunshade
*1	REAR DOOR ARMREST COVER LH	*2	REAR DOOR NO. 2 ARMREST COVER LH
*3	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	*4	REAR DOOR TRIM UPPER COVER LH

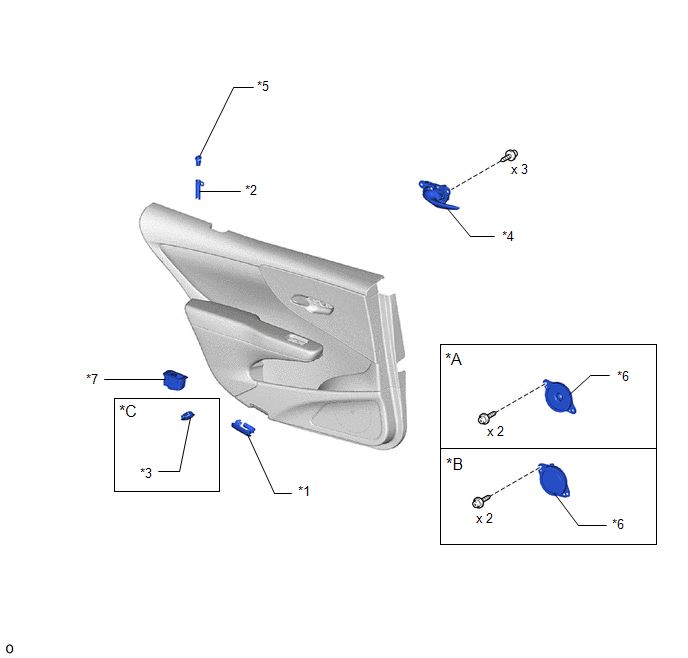

Fig 3: Rear Door Replacement Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 12 Speakers	*B	for 24 Speakers
*C	for 4 Zone Type	-	-
*1	COURTESY LIGHT ASSEMBLY	*2	DOOR LOCK CONTROL KNOB HOLDER LH
*3	NO. 2 COOLER THERMISTOR	*4	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
*5	REAR DOOR LOCK CONTROL KNOB BEZEL LH	*6	REAR NO. 2 SPEAKER ASSEMBLY
*7	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY	-	-

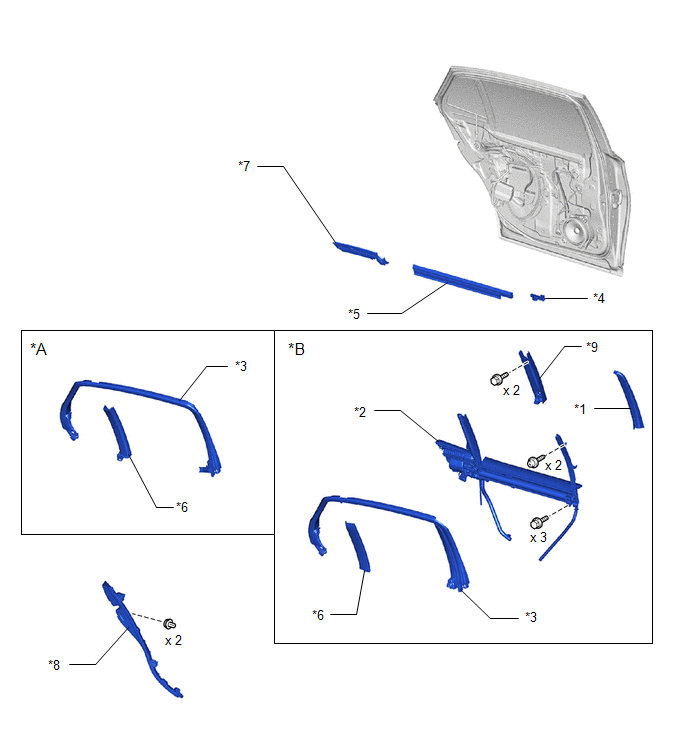

Fig 4: Rear Door Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Rear Door Sunshade	*B	w/ Rear Door Sunshade
*1	CURTAIN RAIL SIDE COVER LH	*2	REAR CURTAIN SUB-ASSEMBLY LH
*3	REAR DOOR FRAME GARNISH LH	*4	REAR DOOR FRONT BELT SEAL LH
*5	REAR DOOR GLASS INNER WEATHERSTRIP LH	*6	REAR DOOR NO. 2 FRAME GARNISH LH
*7	REAR DOOR REAR BELT SEAL LH	*8	REAR DOOR TRIM COVER LH
*9	REAR SIDE WINDOW COVER LH	-	-

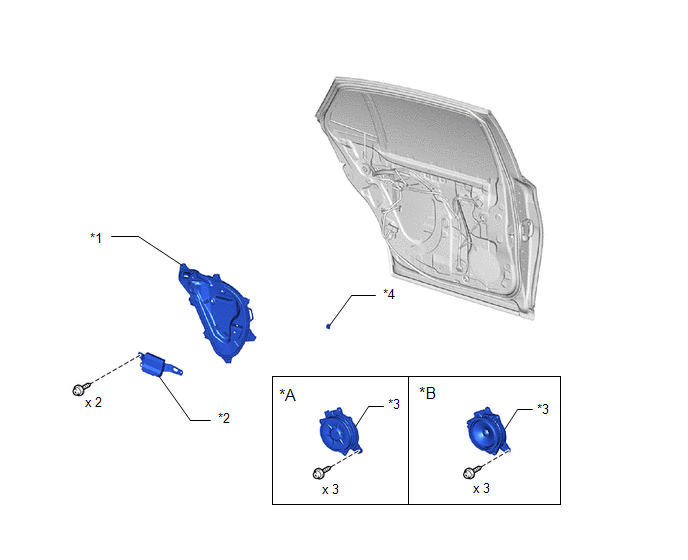

Fig 5: Rear Door Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 24 Speakers	*B	for 12 speakers
*1	REAR DOOR SERVICE HOLE COVER LH	*2	REAR MULTIPLEX NETWORK DOOR ECU LH
*3	REAR SPEAKER ASSEMBLY	*4	SCREW GROMMET

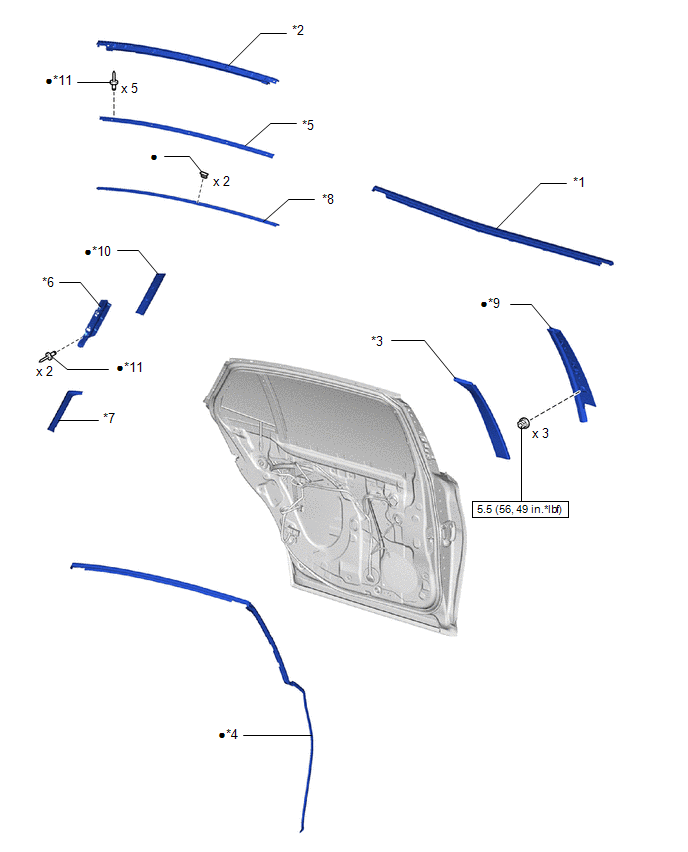

Fig 6: Rear Door Replacement Components With Torque Specifications (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR BELT MOULDING LH	*2	REAR DOOR BELT MOULDING SUB-ASSEMBLY LH
*3	REAR DOOR FRONT BELT MOULDING END COVER LH	*4	REAR DOOR NO. 2 WEATHERSTRIP LH
*5	REAR DOOR NO. 3 GLASS RUN LH	*6	REAR DOOR OUTSIDE MOULDING INSERT LH
*7	REAR DOOR REAR BELT MOULDING END COVER LH	*8	REAR DOOR UPPER WINDOW FRAME MOULDING LH
*9	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	*10	REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)
*11	RIVET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

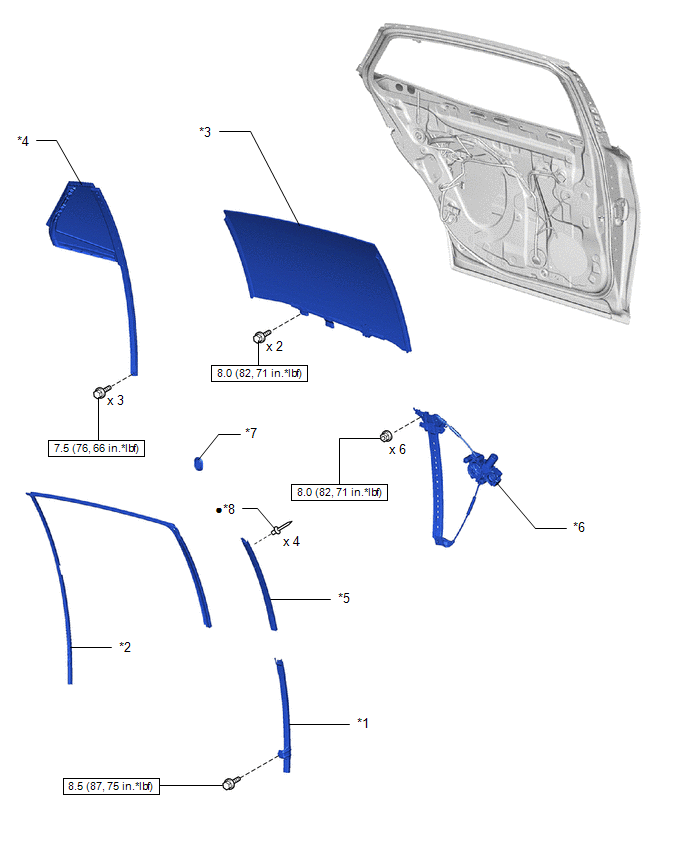

Fig 7: Rear Door Replacement Components With Torque Specifications (7 Of 8)

Callout	Description	Callout	Description
*1	REAR DOOR FRONT WINDOW GUIDE SUB-ASSEMBLY LH	*2	REAR DOOR GLASS RUN LH
*3	REAR DOOR GLASS SUB-ASSEMBLY LH	*4	REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY LH
*5	REAR DOOR REAR WINDOW FRAME LH	*6	REAR DOOR WINDOW REGULATOR ASSEMBLY LH
*7	PLUG HOLE	*8	RIVET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

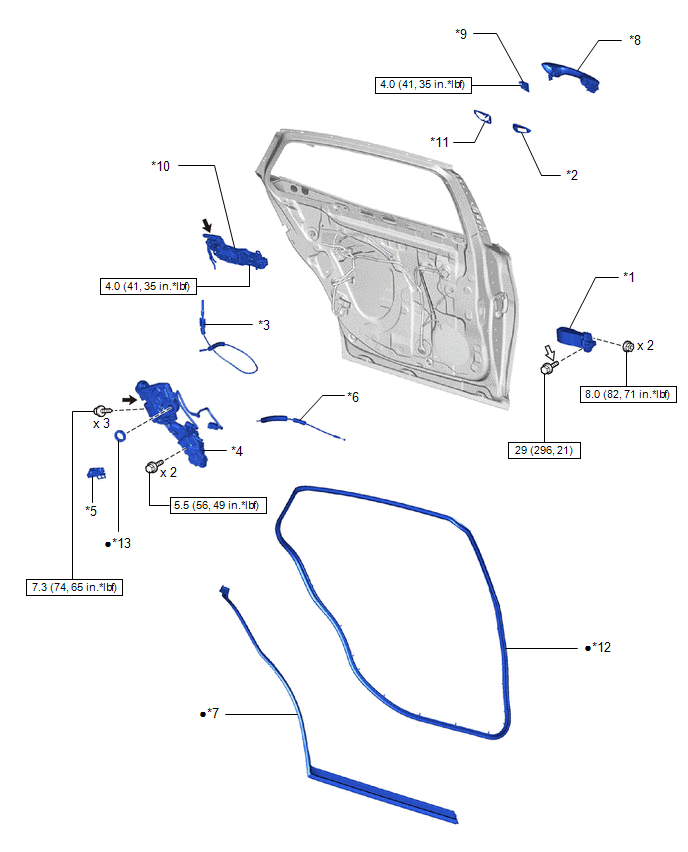

Fig 8: Rear Door Replacement Components With Torque Specifications (8 Of 8)

Callout	Description	Callout	Description
*1	REAR DOOR CHECK ASSEMBLY LH	*2	REAR DOOR FRONT OUTSIDE HANDLE PAD
*3	REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH	*4	REAR DOOR LOCK ASSEMBLY LH
*5	REAR DOOR LOCK COVER SUB-ASSEMBLY LH	*6	REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
*7	REAR DOOR NO. 5 WEATHERSTRIP LH	*8	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
*9	REAR DOOR OUTSIDE HANDLE COVER LH	*10	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
*11	REAR DOOR REAR OUTSIDE HANDLE PAD	*12	REAR DOOR WEATHERSTRIP LH
*13	DOOR LOCK WIRING HARNESS SEAL	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
*	Precoated part	-	-
