Adjustment [10/2017 - ]: Procedure
- INSPECT REAR DOOR PANEL SUB-ASSEMBLY LH

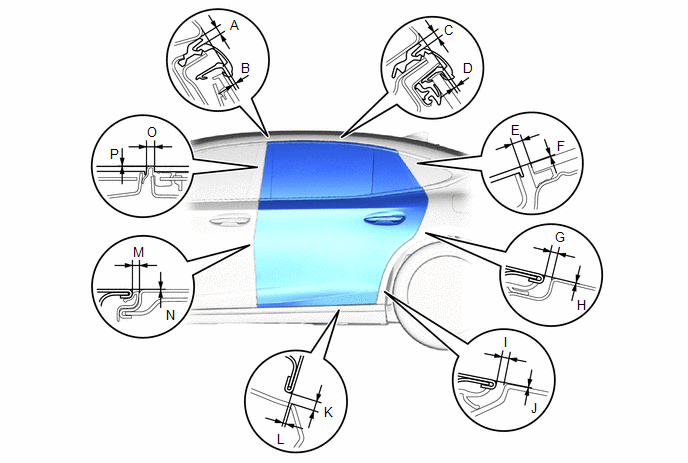

- Check that the clearance measurements of areas A to R are within the standard ranges.
Standard Clearance
Area Measurement Area Measurement A 2.65 to 6.05 mm (0.104 to 0.238 in.) B 0.25 to 1.25 mm (0.010 to 0.049 in.) C 2.65 to 6.05 mm (0.104 to 0.238 in.) D 0.25 to 1.25 mm (0.010 to 0.049 in.) E 3.2 to 7.2 mm (0.126 to 0.283 in.) F -2.0 to 2.0 mm (-0.079 to 0.079 in.) G 2.5 to 5.5 mm (0.098 to 0.217 in.) H -1.2 to 1.8 mm (-0.047 to 0.071 in.) I 2.9 to 6.9 mm (0.114 to 0.272 in.) J -1.7 to 2.3 mm (-0.067 to 0.091 in.) K 3.15 to 7.15 mm (0.124 to 0.281 in.) L -0.15 to 3.85 mm (-0.006 to 0.152 in.) M 3.3 to 5.7 mm (0.130 to 0.224 in.) N -0.9 to 1.5 mm (-0.035 to 0.059 in.) O 3.2 to 7.2 mm (0.126 to 0.283 in.) P -1.5 to 1.5 mm (-0.059 to 0.059 in.)
- Check that the clearance measurements of areas A to R are within the standard ranges.
- ADJUST REAR DOOR PANEL SUB-ASSEMBLY LH

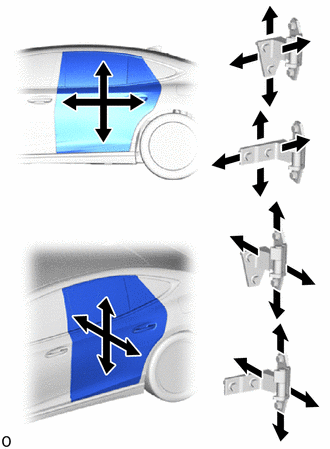

- Using SST, loosen the hinge bolts on the body and adjust the door position.
- SST: 09812-00010
- Tighten the hinge bolts on the body after the adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
- Loosen the hinge bolts on the door and adjust the door position.
- Tighten the hinge bolts on the door after the adjustment.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

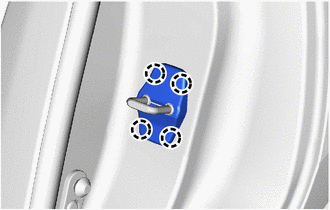

- Detach the claw and remove the door lock striker cover.

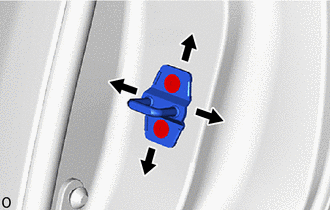

- Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
- Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
- Using SST, loosen the hinge bolts on the body and adjust the door position.
