Removal [10/2017 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

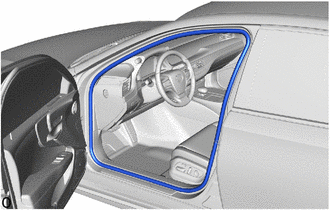

  2. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    GTY777982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the front door opening trim weatherstrip LH.
