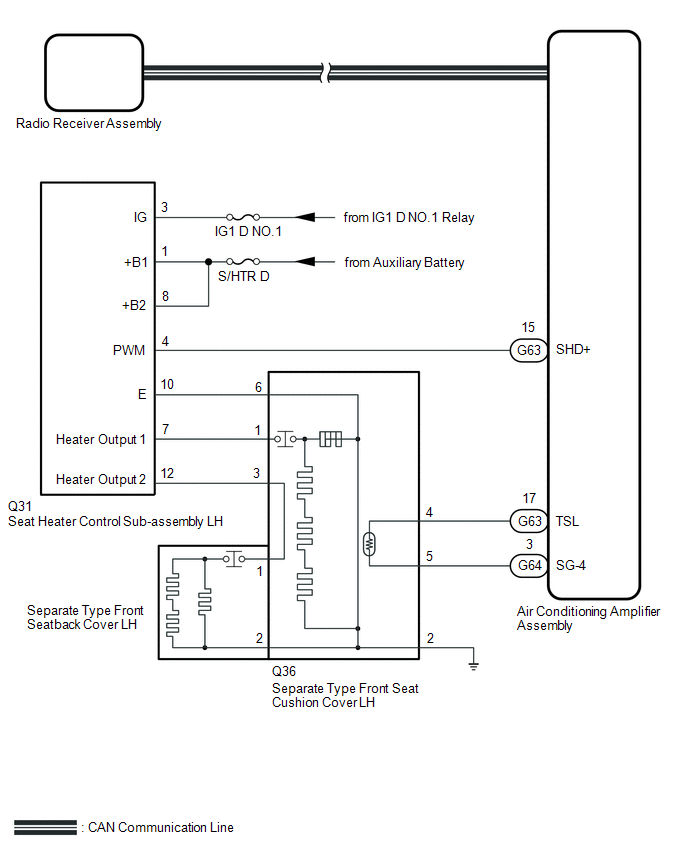

Seat Heater for Front Left Seat does not Operate [10/2017 - 10/2020]: Wiring Diagram

GTY827049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
