Components [10/2020 - 11/2021]
Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (1 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (2 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | INSTRUMENT SIDE PANEL LH | *4 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

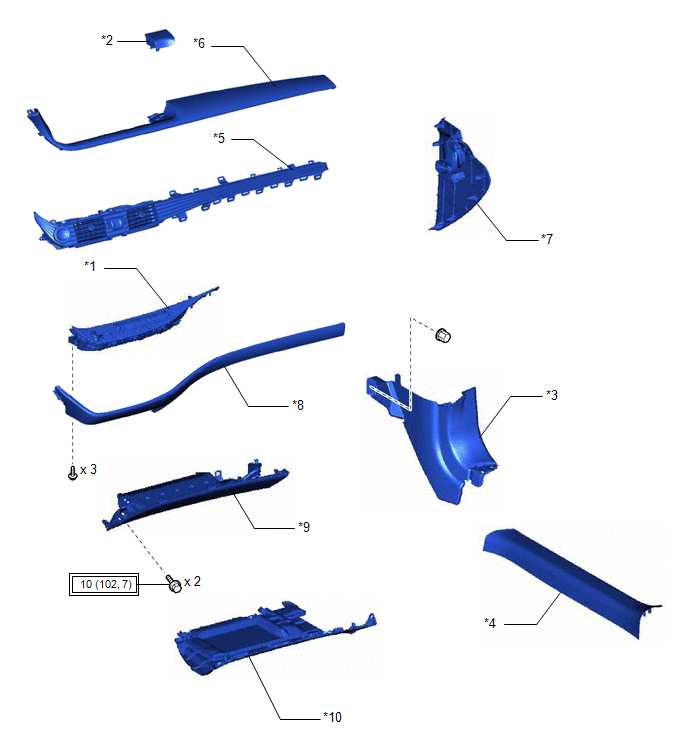

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (3 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | COWL SIDE TRIM BOARD RH | *4 | FRONT DOOR SCUFF PLATE RH |
| *5 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *6 | INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY |
| *7 | INSTRUMENT SIDE PANEL RH | *8 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *9 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | *10 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

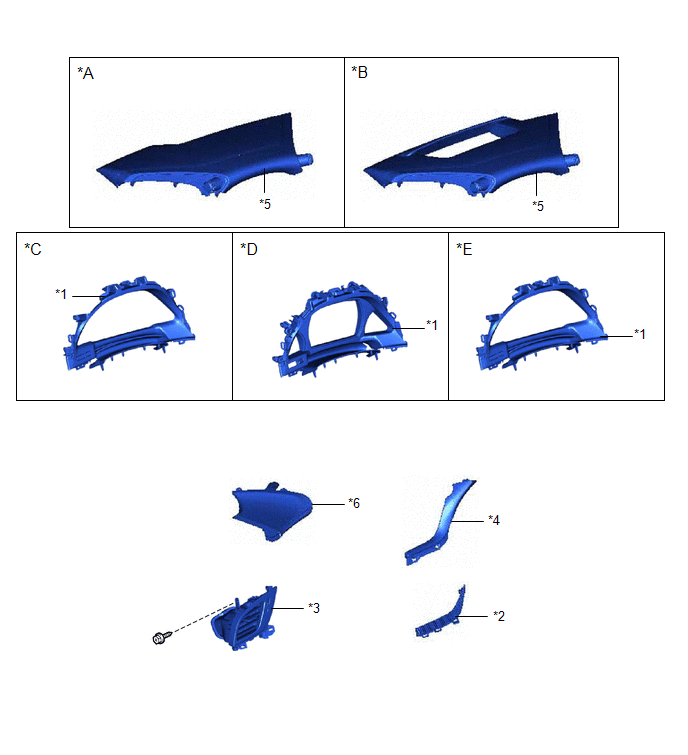

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Headup Display | *B | w/ Headup Display |
| *C | for Sport Package | *D | except Sport Package, w/o Advanced Drive |
| *E | w/ Advanced Drive | - | - |
| *1 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *2 | NO. 1 INSTRUMENT CLUSTER MOULDING |
| *3 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL SAFETY PAD |
| *5 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY) |

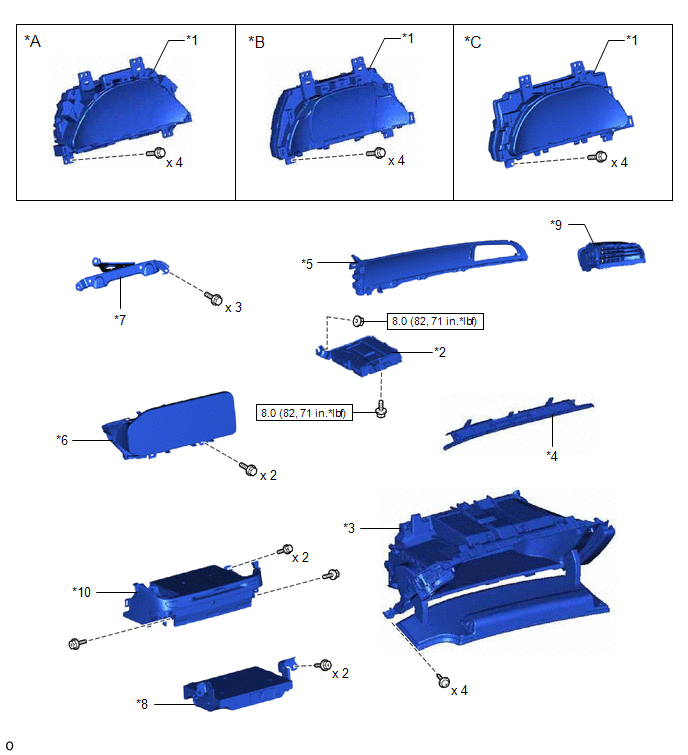

Fig 5: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (5 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sport Package | *B | except Sport Package, w/o Advanced Drive |
| *C | w/ Advanced Drive | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | DCM (TELEMATICS TRANSCEIVER) WITH BRACKET |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | *4 | GLOVE COMPARTMENT DOOR PAD PLATE |
| *5 | INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH | *6 | MULTI-DISPLAY ASSEMBLY |
| *7 | MULTI-DISPLAY CONTROLLER BRACKET A | *8 | NAVIGATION ECU WITH BRACKET |
| *9 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY | *10 | RADIO RECEIVER ASSEMBLY WITH BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (6 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 12 Speakers | *B | for 24 Speakers |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY | *2 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT PILLAR GARNISH RH |
| *5 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |

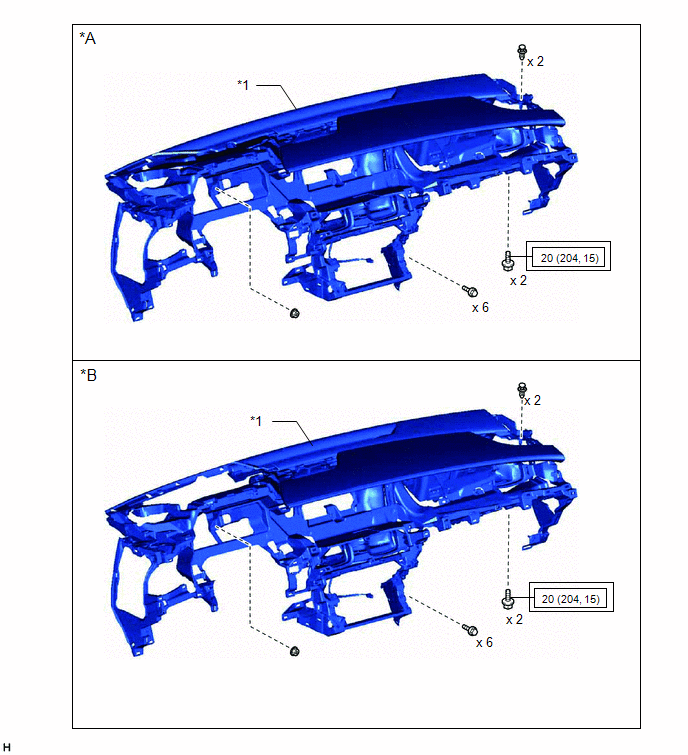

Fig 8: Instrument Panel Safety Pad Replacement Components With Torque Specifications [10/2020 - 11/2021] (8 Of 12)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Headup Display | *B | w/ Headup Display |
| *1 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

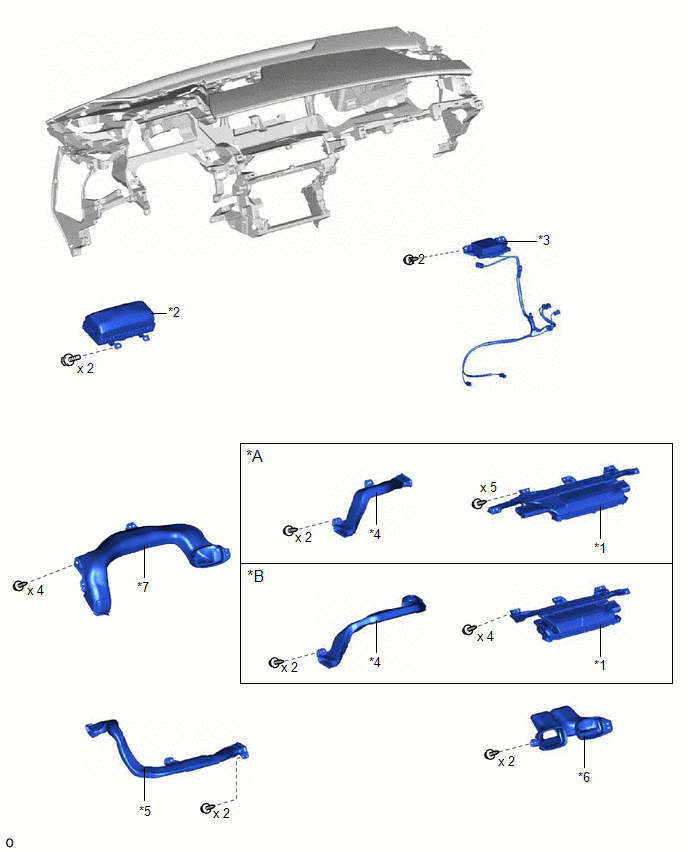

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Headup Display | *B | w/ Headup Display |
| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | *4 | NO. 1 SIDE DEFROSTER NOZZLE DUCT |
| *5 | NO. 2 SIDE DEFROSTER NOZZLE DUCT | *6 | NO. 4 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *7 | NO. 5 HEATER TO REGISTER DUCT | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | GLOVE COMPARTMENT DOOR LOCK ASSEMBLY | *2 | GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COIN BOX ASSEMBLY | - | - |
