Removal [10/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

      Refer to PRECAUTION [10/2023 - ]

    • Do not insert your fingers inside the connector opening.
    • Do not pull or lift up the wiring harness.

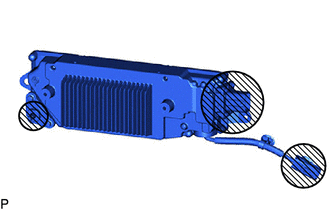

    • When lifting up the DC/DC converter assembly, hold it by the areas indicated in the illustration.
      GTY1084551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [10/2023 - ]

  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 26

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    HINT:

    Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

    Refer to PROCEDURE - Step 30

  8. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [10/2023 - ]

  9. REMOVE CONNECTOR COVER ASSEMBLY

    See step  12

  10. CHECK TERMINAL VOLTAGE

    See step  13

  11. INSTALL CONNECTOR COVER ASSEMBLY

    See step  15

  12. REMOVE DC/DC CONVERTER COOLING EXHAUST DUCT

    Refer to PROCEDURE - Step 12

  13. DISCONNECT NO. 3 FLOOR WIRE
    WARNING:

    Wear insulated gloves.

    1. Disengage the claw and open the No. 3 floor wire terminal cover.
      GTY1084764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the nut and disconnect the No. 3 floor wire from the DC/DC converter assembly.
      GTY1084718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE DC/DC CONVERTER ASSEMBLY W/BRACKET
    WARNING:

    Wear insulated gloves.

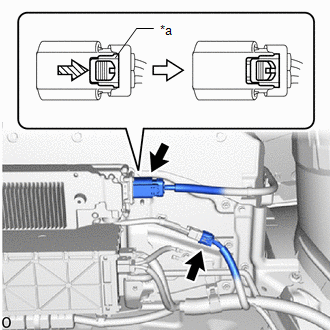

    1. Disconnect the connector.
      GTY1084836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock
      Slide
    2. Using a screwdriver, slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
    3. Disengage the clamp.
      GTY1084719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and DC/DC converter assembly w/bracket.
  15. REMOVE NO. 2 CONVERTER BRACKET
    1. Remove the 2 bolts and No. 2 converter bracket.
      GTY1084723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 CONVERTER BRACKET
    1. Remove the 2 bolts and No. 1 converter bracket.
      GTY1084721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
