Removal [10/2023 - ]: Procedure
- PRECAUTION NOTE:
- After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- If the multi power control sub-battery is subjected to an impact, replace it with a new one.
- When storing the multi power control sub-battery, do not store for 24 hours or more on its side, flipped upside down or in a tilted condition.
- If the multi power control sub-battery was replaced, turn the power switch to ON and then off with the shift position in P and wait 3 seconds to perform ECU learning.
- Store the multi power control sub-battery in a location away from rainwater.
- Do not stand on the multi power control sub-battery.
- Refer to the table below for the combination of the multi power control ECU assembly and multi power control sub-battery.
Parts Combination 1 Combination 2 Letters on Multi Power Control ECU Label #A #B Letters on Multi Power Control Sub-battery Label #1 #2
*1 Multi Power Control ECU Assembly *2 Multi Power Control Sub-battery *a Label - REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 25
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [10/2023 - ]
- REMOVE LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 24
- REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 27
- REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 26
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
HINT:
Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).
Refer to PROCEDURE - Step 30
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [10/2023 - ]
- REMOVE CONNECTOR COVER ASSEMBLY
Refer to PROCEDURE - Step 12
- CHECK TERMINAL VOLTAGE
Refer to PROCEDURE - Step 13
- TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY
Refer to PROCEDURE - Step 14
- REMOVE NO. 3 SUB-BATTERY MULTI POWER BRACKET
- DISCONNECT NO. 3 FLOOR WIRE WARNING:
Wear insulated gloves.

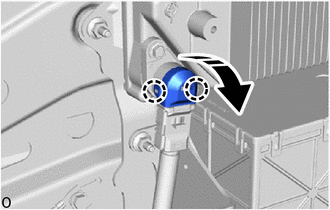

- Disengage the claw and open the No. 3 floor wire terminal cover.
Remove in this Direction - Remove the nut and disconnect the No. 3 floor wire from the DC/DC converter assembly.
- Disconnect the 2 connectors.
- Remove the bolt and disconnect the earth wire from the No. 2 sub-battery multi power bracket.
- Disengage the clamp and disconnect the No. 3 floor wire from the No. 1 sub-battery multi power bracket and No. 2 sub-battery multi power bracket.
- Disengage the claw and open the No. 3 floor wire terminal cover.
- REMOVE MULTI POWER CONTROL SUB-BATTERY
- REMOVE NO. 1 SUB-BATTERY MULTI POWER BRACKET
- REMOVE SUB-BATTERY MULTI POWER HOSE SUB-ASSEMBLY
HINT:
Only perform this procedure when replacement of the sub-battery multi power hose sub-assembly is necessary.
