DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [10/2023 - ]: Wiring Diagram

  1. w/ Front LiDAR Sensor

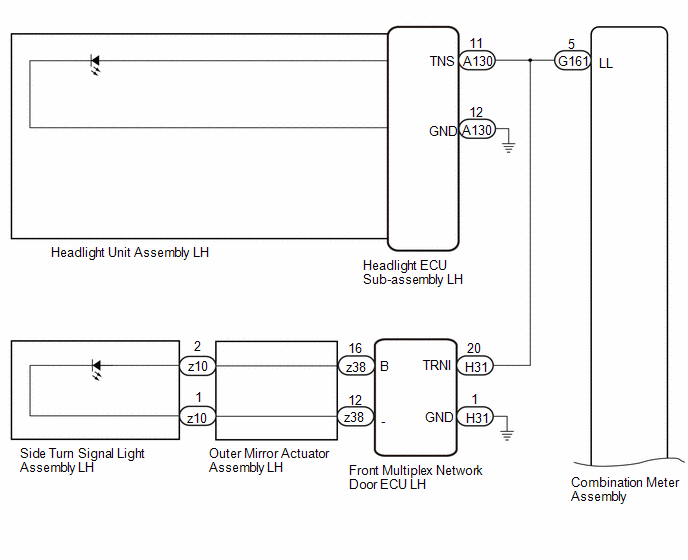

    GTY1229785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

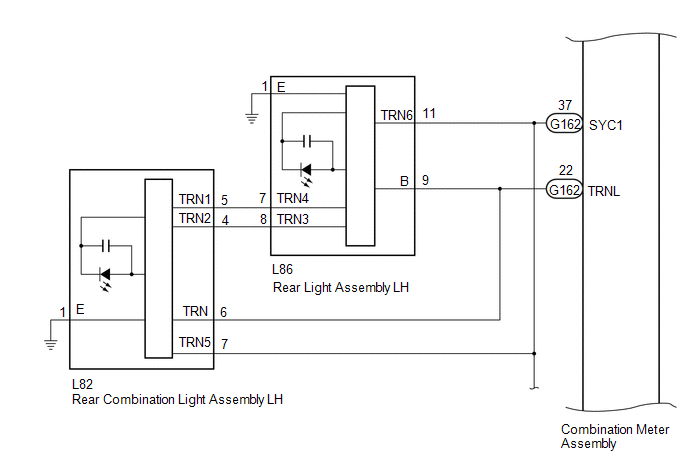

    GTY1233624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

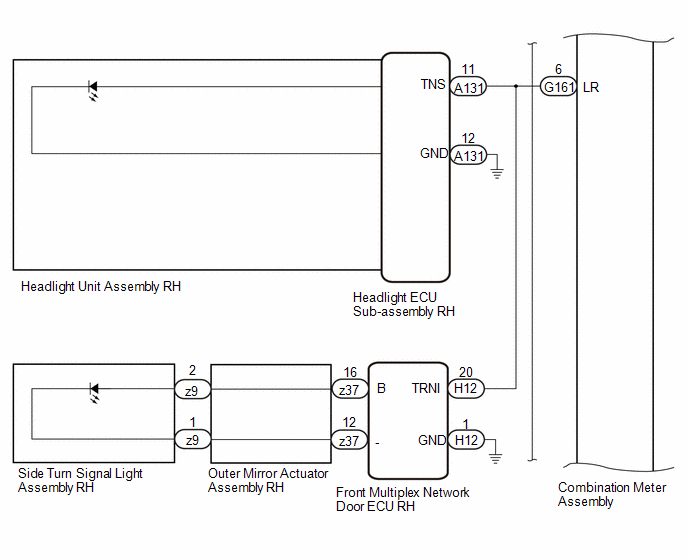

    GTY1238992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

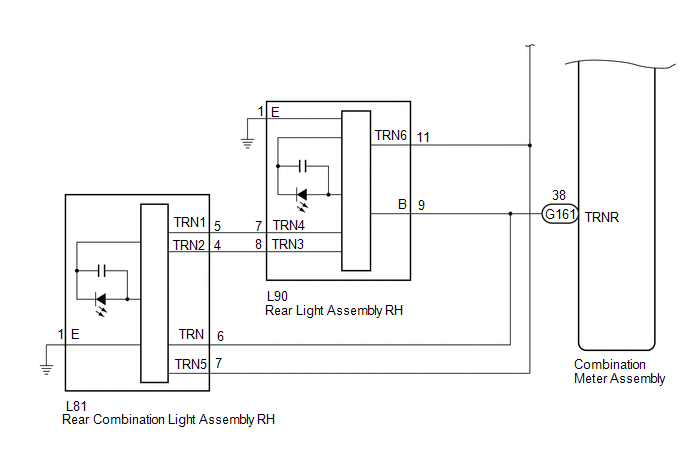

    GTY1228594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Front LiDAR Sensor
    GTY1229784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1233625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1238991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1228595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
