Removal [10/2023 - ]: Procedure

  1. CHECK SOFTWARE PART NUMBER (w/ Front LiDAR Sensor)
    NOTE:

    If the combination meter assembly is replaced, check the software part number.

    Refer to SOFTWARE UPDATE [11/2021 - ]

  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 2

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 3

  4. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 4

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  7. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD

    Refer to PROCEDURE - Step 17

  8. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  9. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22

  11. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 24

  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

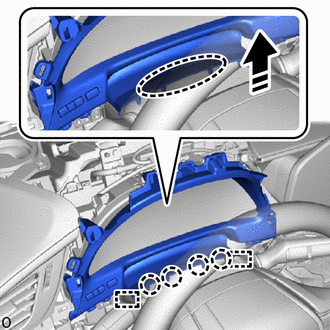

    1. GTY1239352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      Detach the claw and guide as shown in the illustration.

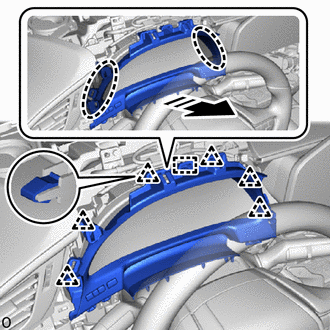

    2. Place both hands at the position shown in the illustration and pull towards the rear of the vehicle to detach the clip and guide and remove the instrument cluster finish panel assembly.
      GTY1236943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    3. GTY1234304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

  13. REMOVE COMBINATION METER ASSEMBLY
    1. Detach the clamp.
      GTY1239689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws.
    3. Pull in the direction of the arrow in the illustration and detach the pin and remove the combination meter assembly.
      GTY1239687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. GTY1240438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/o Front LiDAR Sensor:

      1. Detach the wire harness clamp and disconnect the 4 connectors.
    5. w/ Front LiDAR Sensor:
      1. Detach the wire harness clamp and disconnect the 4 connectors.
        GTY971075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
