DTC C1464: Front Speed Sensor RH Circuit; DTC C1465: Front Speed Sensor LH Circuit [10/2020 - 10/2023]: Wiring Diagram

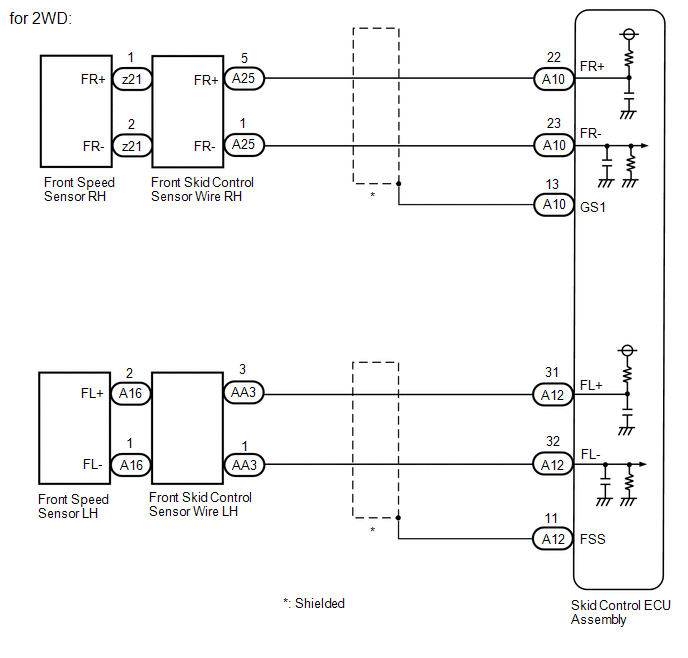

GTY801132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

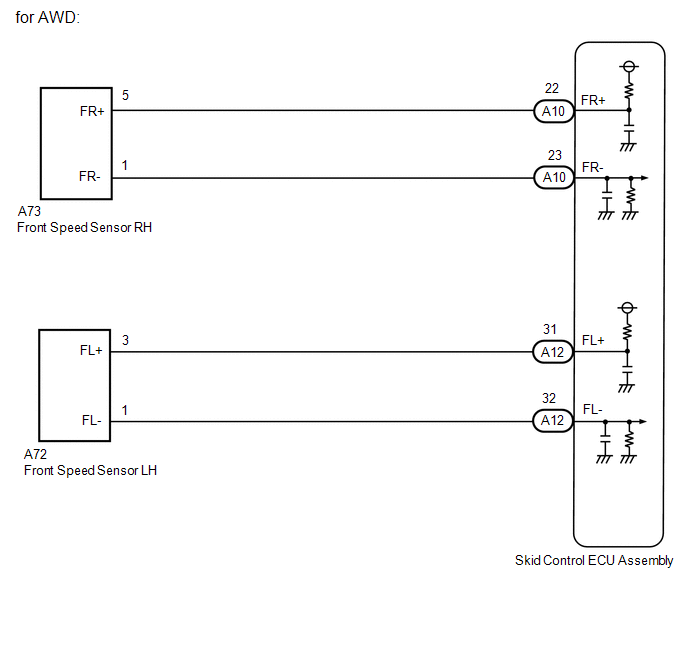

GTY828949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
