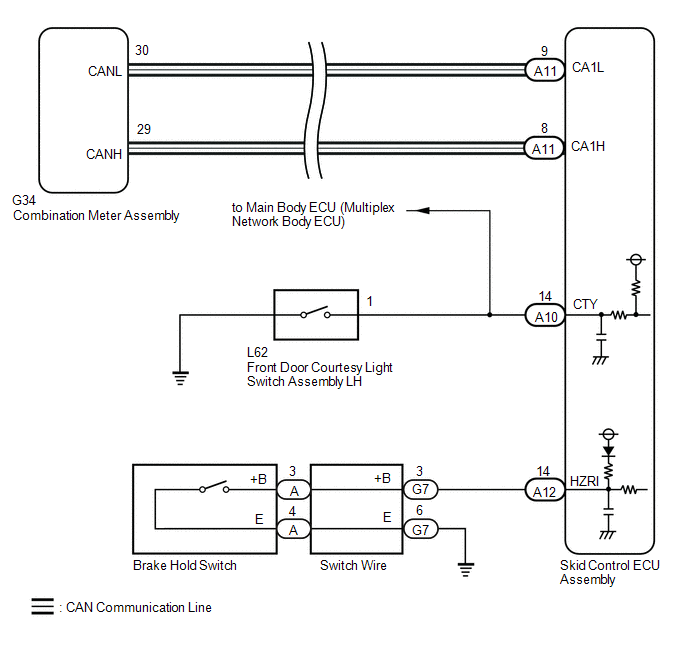

Brake Hold Standby Indicator Light Circuit [10/2020 - 10/2023]: Wiring Diagram

GTY796260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
