Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 23

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 25

  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 26

  5. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 27

  6. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 28

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 31

  10. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

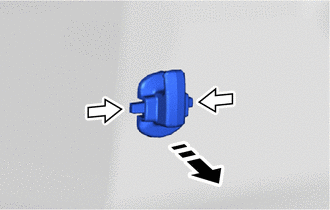

    1. Push the lever in the direction of the arrow shown in the illustration and remove the rope hook.
      GTY833873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Push

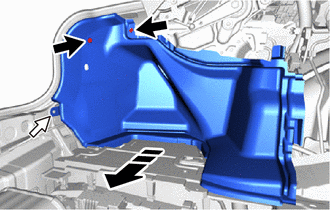

    2. Remove the grommet.
      GTY808076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Clip
      Grommet
    3. Using a clip remover, detach the 2 clips and remove the luggage compartment trim cover assembly LH.
  13. REMOVE LUGGAGE CLOSER MOTOR ASSEMBLY

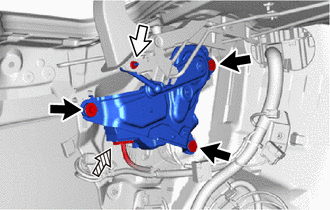

    1. Disconnect the connector.
      GTY813939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      Connector
    2. Remove the nut and 3 bolts.

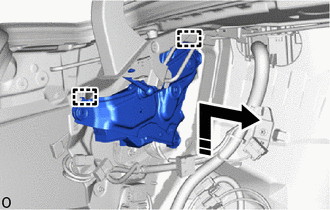

    3. Detach the guide and remove the luggage closer motor assembly in the direction indicated by the arrow shown in the illustration.
      NOTE:
      • While holding the luggage closer motor assembly, remove it.
      • Do not drop the luggage closer motor assembly.
      GTY837928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
