Removal [10/2022 - ]: Procedure

REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 3
REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 4
REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]
REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]
REMOVE INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY
Refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

REMOVE MULTI-DISPLAY ASSEMBLY

Remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place your hands shown in the illustration and move it toward the rear of the vehicle to detach the clip and guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

NOTE:

If excessive force is applied to the multi-display assembly, it may become damaged.

Detach the clamp, disconnect each connector and remove the multi-display assembly.

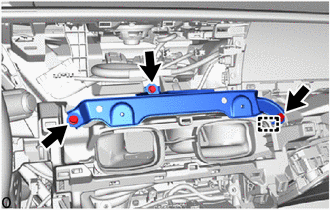

REMOVE MULTI-DISPLAY CONTROLLER BRACKET A

Remove the 3 bolts.
