Meter / Gauge System - Symptom Tests (2 Of 2) & Circuit Tests
>>
Meter / Gauge System
>>
Steering Pad Switch Circuit [10/2023 - ]
>>
Wiring Diagram

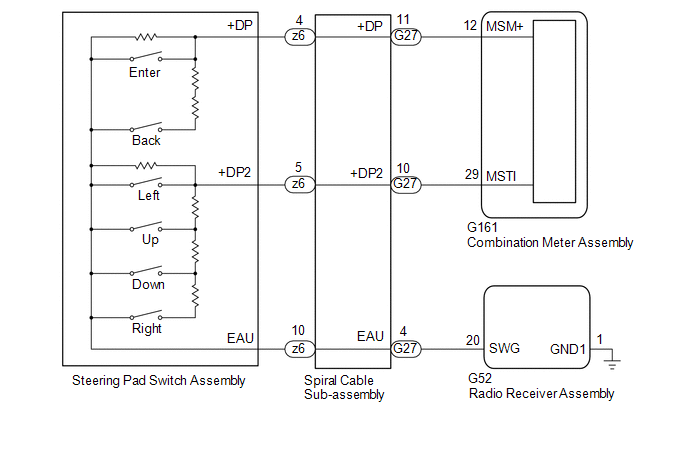

Steering Pad Switch Circuit [10/2023 - ]: Wiring Diagram
w/ Front LiDAR Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Front LiDAR Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
