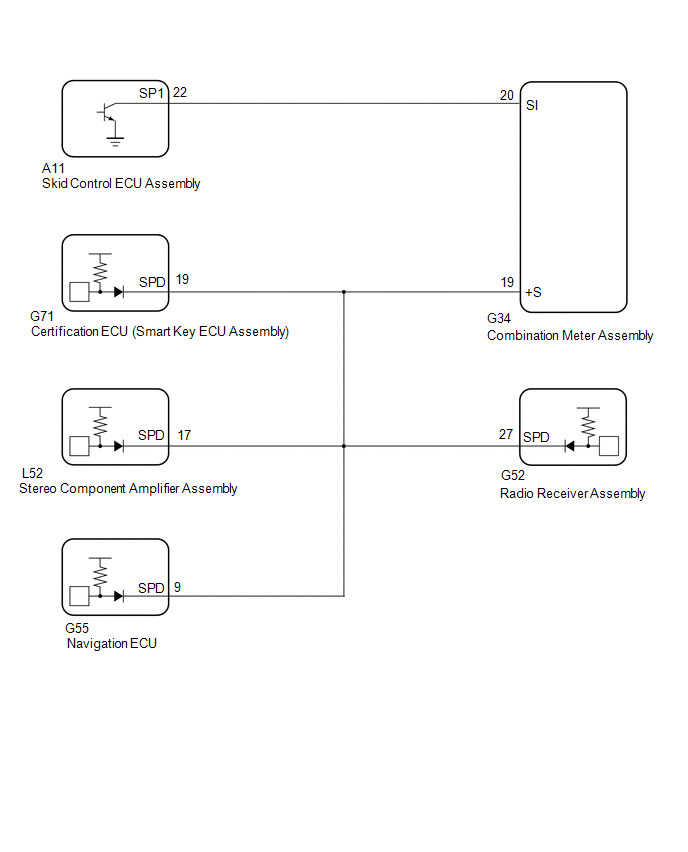

Speed Signal Circuit [09/2019 - 10/2020]: Wiring Diagram

GTY970256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
