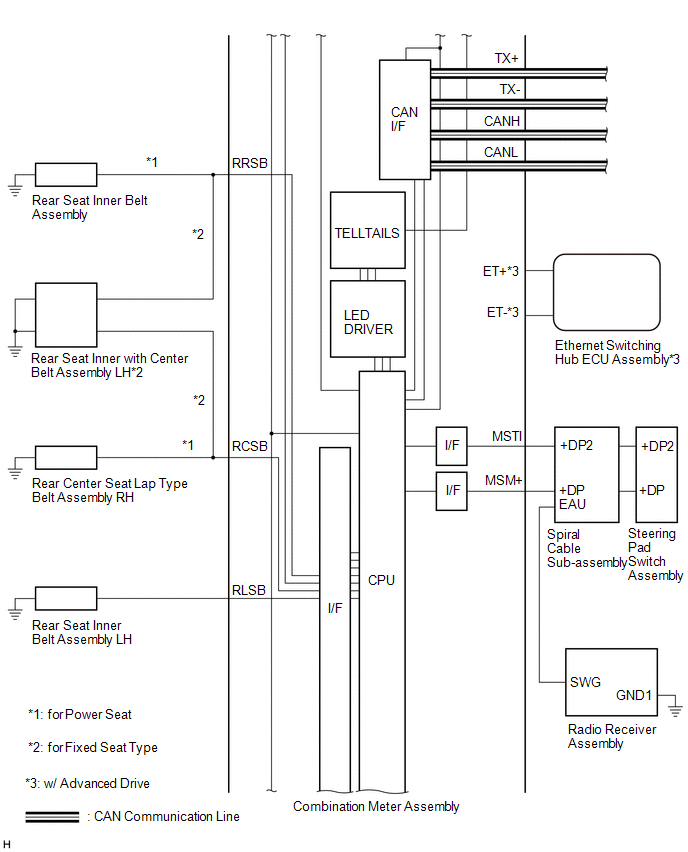

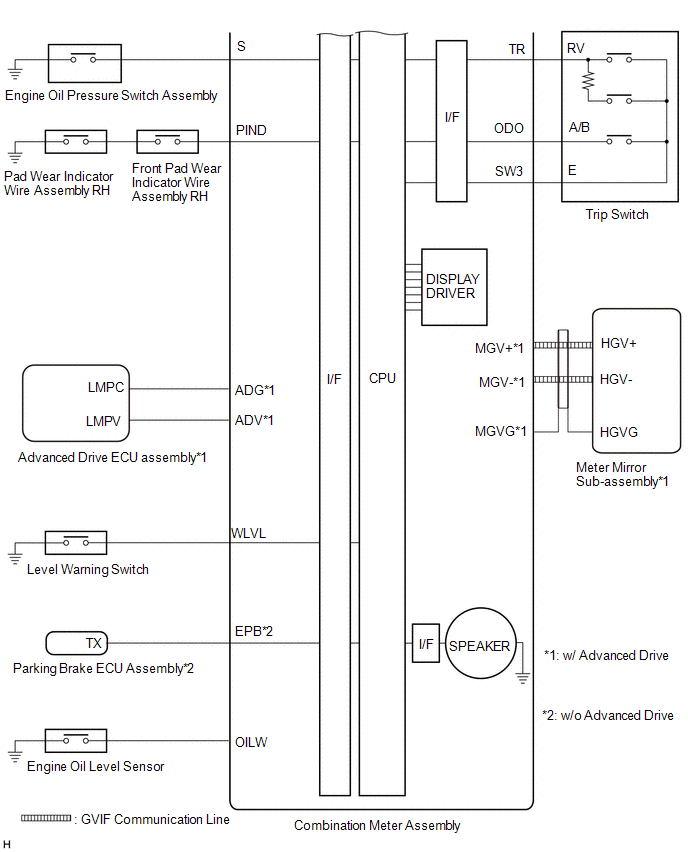

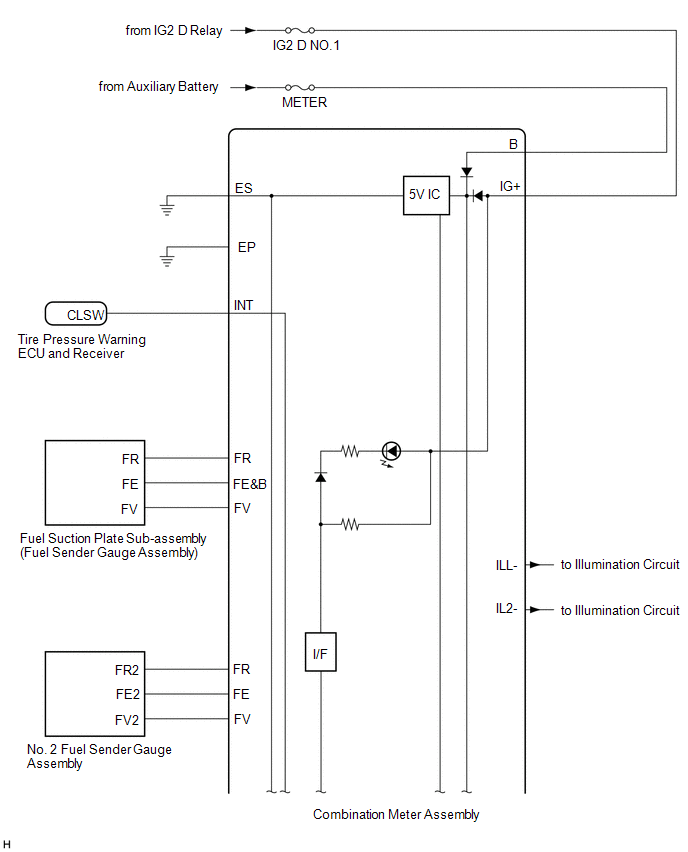

System Diagram [10/2022 - 10/2023]

HINT:

Inspect the communication function by CAN communication system.

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

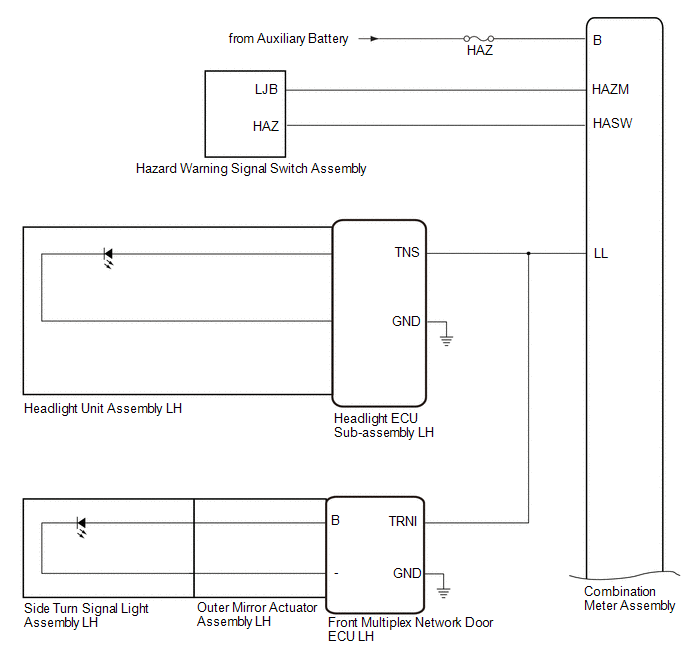

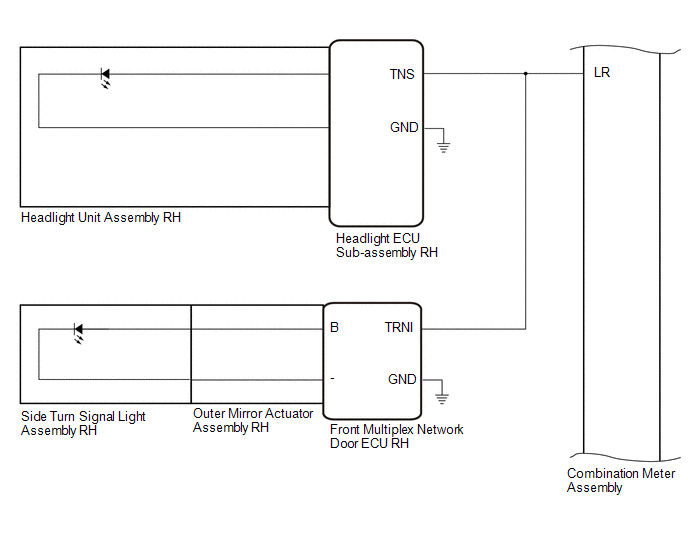

1. Turn Signal Light Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

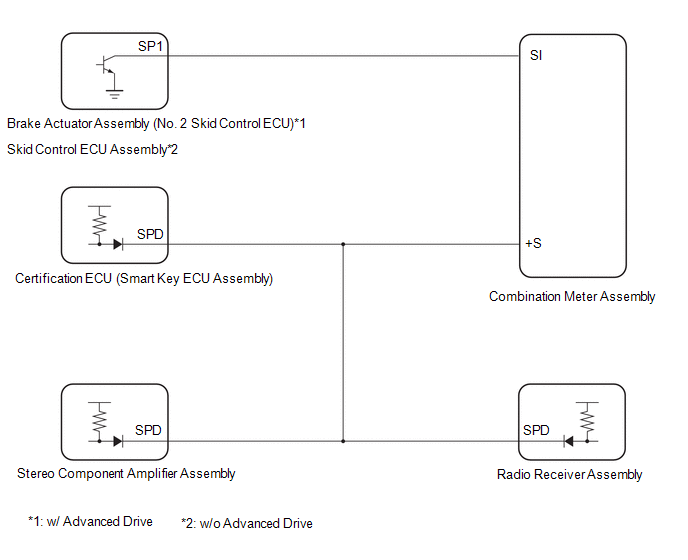

2. Speed Signal Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
