Parts Location [10/2023 - ]: Illustration

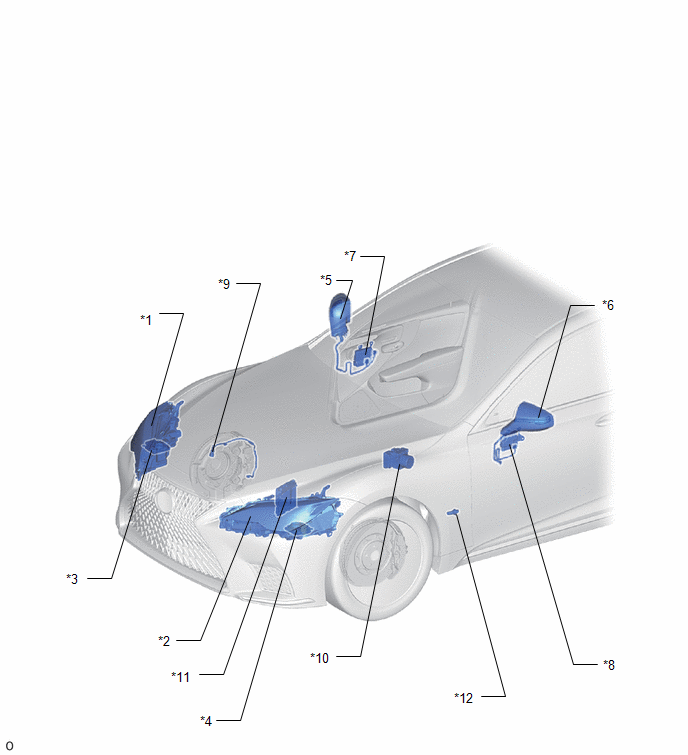

| *1 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH |
*2 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH |
| *3 | HEADLIGHT ECU SUB-ASSEMBLY RH | *4 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*6 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | FRONT MULTIPLEX NETWORK DOOR ECU RH | *8 | FRONT MULTIPLEX NETWORK DOOR ECU LH |
| *9 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *10 | BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU) |
| *11 | ECM | *12 | LEVEL WARNING SWITCH ASSEMBLY |
| *A | w/ Front LiDAR Sensor | *B | for 23 Speakers |
| *C | for 12 Speakers | - | - |

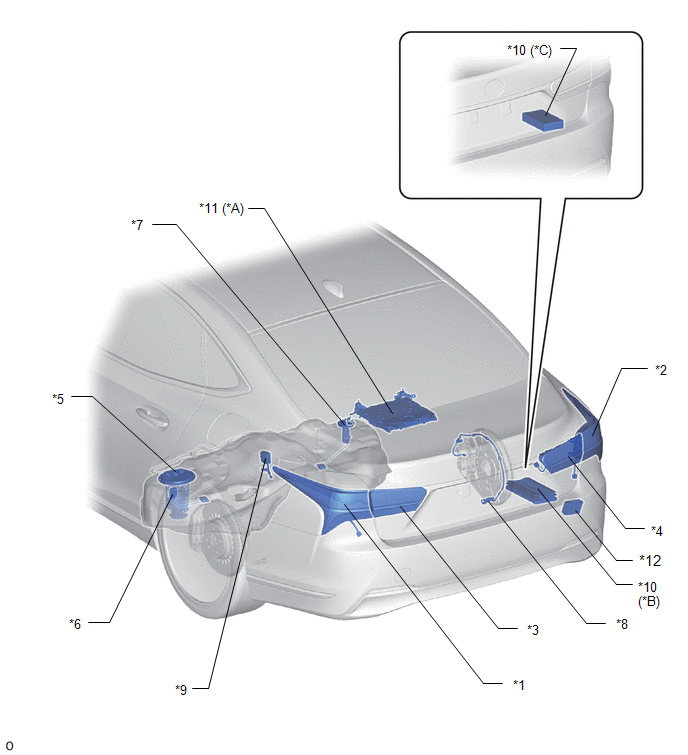

| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | REAR LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *6 | FUEL SENDER GAUGE ASSEMBLY |
| *7 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *8 | PAD WEAR INDICATOR WIRE ASSEMBLY RH |
| *9 | PARKING BRAKE ECU ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *11 | ADVANCED DRIVE ECU ASSEMBLY | *12 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *A | for Power Seat | *B | for Fixed Seat Type |
| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH |
| *3 | REAR SEAT INNER BELT ASSEMBLY RH | *4 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |
| *A | w/ Headup Display System | *B | w/ Front LiDAR Sensor |
| *C | w/o Front LiDAR Sensor | - | - |

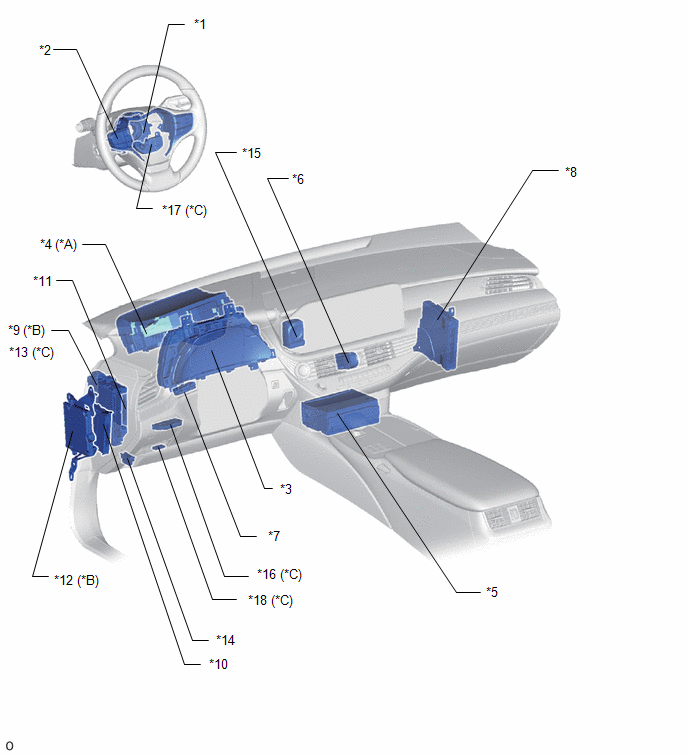

| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | METER MIRROR SUB-ASSEMBLY |
| *5 | RADIO RECEIVER ASSEMBLY | *6 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *7 | TRIP SWITCH | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - IG2 D NO. 1 FUSE - HAZ FUSE |
*10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | ETHERNET SWITCHING HUB ECU ASSEMBLY |
| *13 | POWER DISTRIBUTION BOX ASSEMBLY - METER IGR FUSE - ECU-DCC NO. 3 FUSE - HAZ FUSE |
*14 | DLC3 |
| *15 | CLOCK ASSEMBLY | *16 | INTEGRATION CONTROL AND PANEL ASSEMBLY (HEADUP DISPLAY SWITCH) |
| *17 | HEATED STEERING WHEEL CONTROLLER (MULTIPLEX NETWORK STEERING ECU) | *18 | TRUNK AND FUEL SWITCH ASSEMBLY (FUEL LID OPENER SWITCH) |
