Parts Location [10/2020 - 11/2021]: Illustration

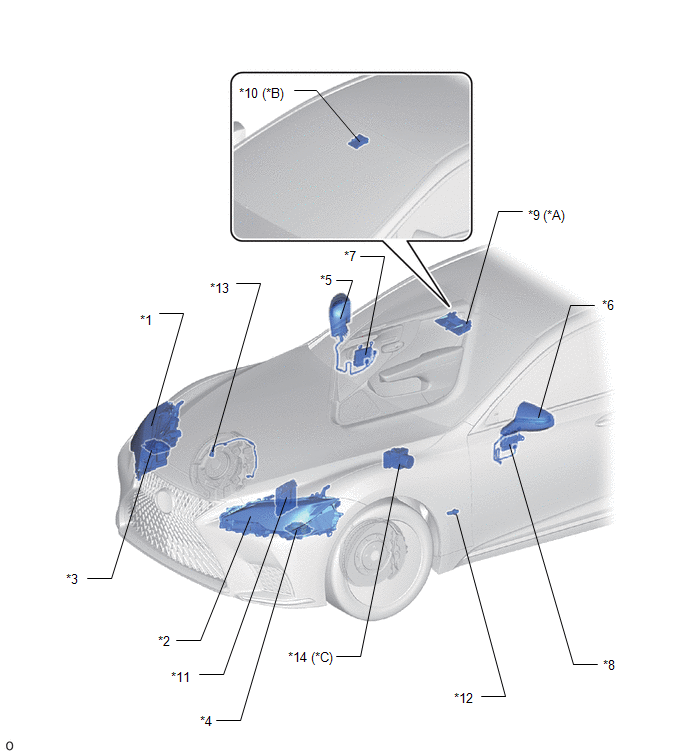

| *A | for Stereo Camera Type | *B | for Mono Camera Type |
| *C | w/ Advanced Drive | - | - |
| *1 | HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH |
*2 | HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH |
| *3 | HEADLIGHT ECU SUB-ASSEMBLY RH | *4 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*6 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | FRONT MULTIPLEX NETWORK DOOR ECU RH | *8 | FRONT MULTIPLEX NETWORK DOOR ECU LH |
| *9 | OBJECT RECOGNITION CAMERA | *10 | FORWARD RECOGNITION CAMERA |
| *11 | ECM | *12 | LEVEL WARNING SWITCH ASSEMBLY |
| *13 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *14 | BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU) |

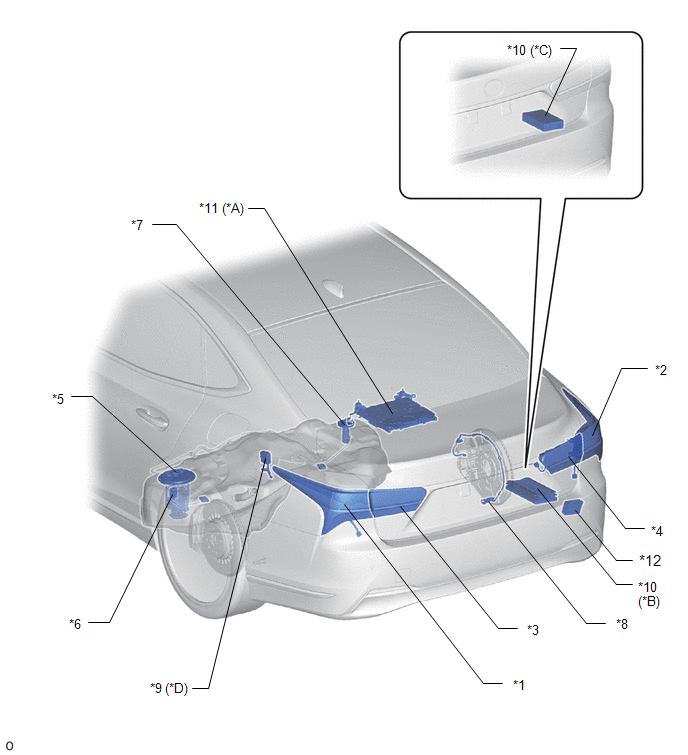

| *A | w/ Advanced Drive | *B | for 23 Speakers |
| *C | for 12 Speakers | *D | w/o Advanced Drive |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | REAR LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *6 | FUEL SENDER GAUGE ASSEMBLY |
| *7 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *8 | PAD WEAR INDICATOR WIRE ASSEMBLY RH |
| *9 | PARKING BRAKE ECU ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *11 | ADVANCED DRIVE ECU ASSEMBLY | *12 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *A | for Power Seat | *B | for Fixed Seat Type |
| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH |
| *3 | REAR SEAT INNER BELT ASSEMBLY RH | *4 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |

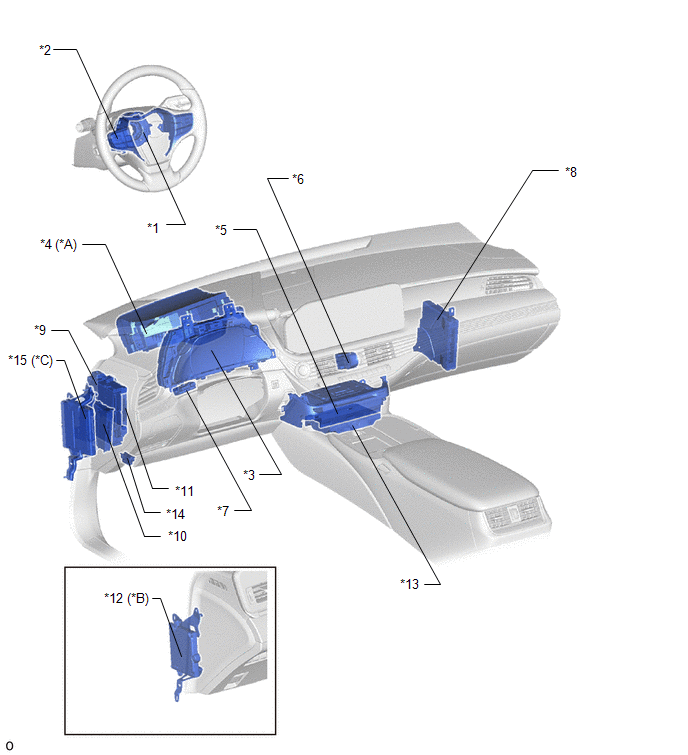

| *A | w/ Headup Display System | *B | w/ Advanced Drive |
| *C | w/o Advanced Drive | - | - |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | METER MIRROR SUB-ASSEMBLY |
| *5 | RADIO RECEIVER ASSEMBLY | *6 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *7 | TRIP SWITCH | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - IG2 D NO. 1 FUSE - HAZ FUSE |
*10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | ETHERNET SWITCHING HUB ECU ASSEMBLY |
| *13 | NAVIGATION ECU | *14 | DLC3 |
| *15 | SKID CONTROL ECU ASSEMBLY | - | - |
