Parts Location [10/2017 - 09/2018]: Illustration

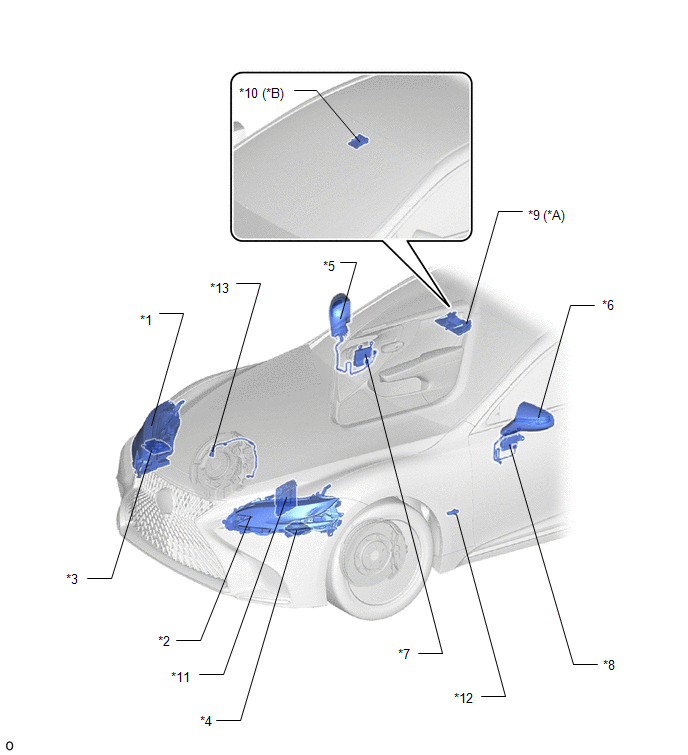

| *A | w/ AFS (Front-lighting Adaptive System) | *B | w/o AFS (Front-lighting Adaptive System) |
| *1 | HEADLIGHT ASSEMBLY RH | *2 | HEADLIGHT ASSEMBLY LH |
| *3 | HEADLIGHT ECU SUB-ASSEMBLY RH | *4 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*6 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | FRONT MULTIPLEX NETWORK DOOR ECU RH | *8 | FRONT MULTIPLEX NETWORK DOOR ECU LH |
| *9 | OBJECT RECOGNITION CAMERA | *10 | FORWARD RECOGNITION CAMERA |
| *11 | ECM | *12 | LEVEL WARNING SWITCH ASSEMBLY |
| *13 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY REAR COMBINATION LIGHT ASSEMBLY LH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*4 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *5 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *6 | FUEL SENDER GAUGE ASSEMBLY |
| *7 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *8 | PAD WEAR INDICATOR WIRE ASSEMBLY RH |
| *A | for Power Seat | *B | for Fixed Seat Type |
| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH |
| *3 | REAR SEAT INNER BELT ASSEMBLY RH | *4 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |

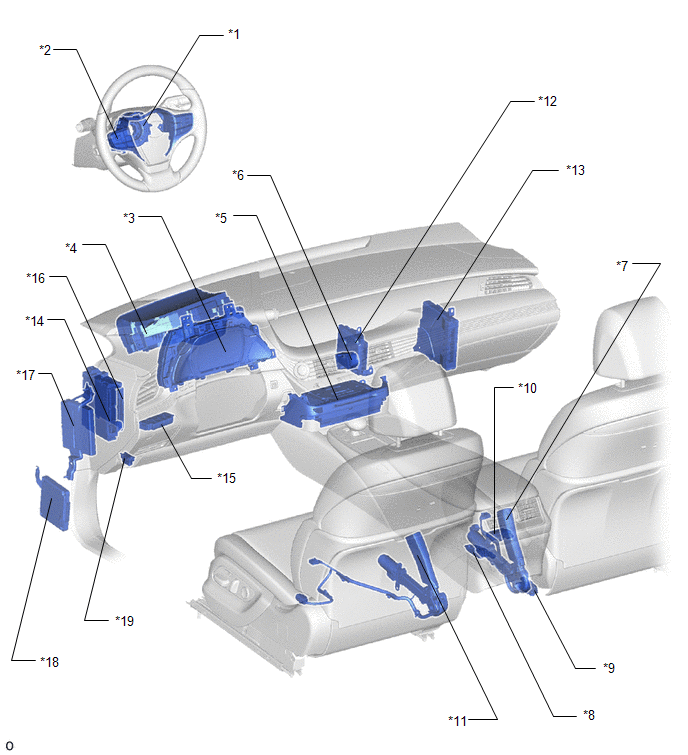

| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | METER MIRROR SUB-ASSEMBLY |
| *5 | RADIO RECEIVER ASSEMBLY | *6 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *7 | FRONT SEAT INNER BELT ASSEMBLY RH | *8 | FRONT OCCUPANT CLASSIFICATION SENSOR LH |
| *9 | REAR OCCUPANT CLASSIFICATION SENSOR LH | *10 | OCCUPANT DETECTION ECU |
| *11 | FRONT SEAT INNER BELT ASSEMBLY LH | *12 | SHIFT CONTROL ECU |
| *13 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *14 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER - IG2 D NO. 1 - HAZ |
| *15 | INTEGRATION CONTROL AND PANEL ASSEMBLY - HEADUP DISPLAY SWITCH |
*16 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *17 | SKID CONTROL ECU ASSEMBLY | *18 | DRIVING SUPPORT ECU ASSEMBLY |
| *19 | DLC3 | - | - |
