DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [10/2022 - 10/2023]: Wiring Diagram

  1. w/o Advanced Drive

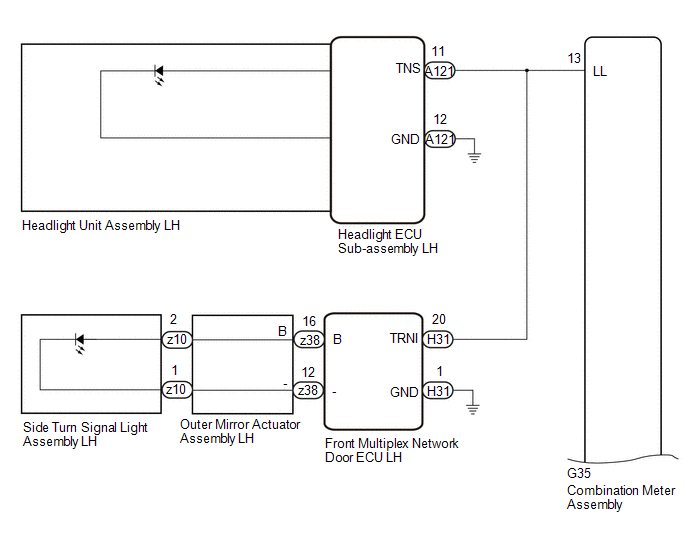

    GTY1128723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY968134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

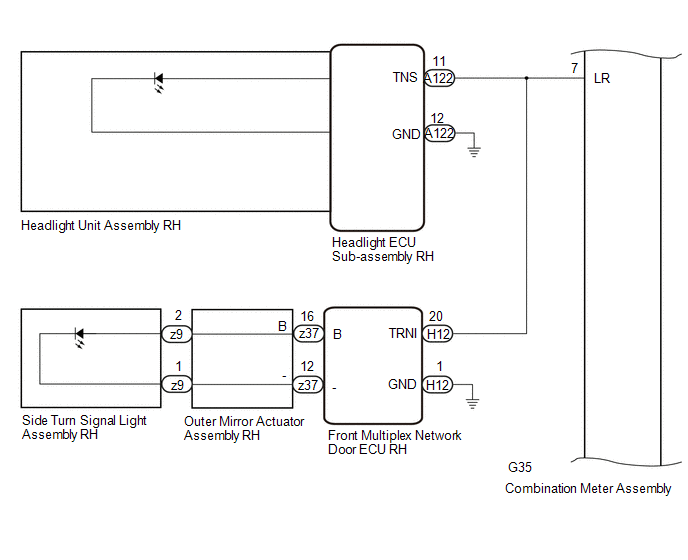

    GTY1131544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY967995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Advanced Drive

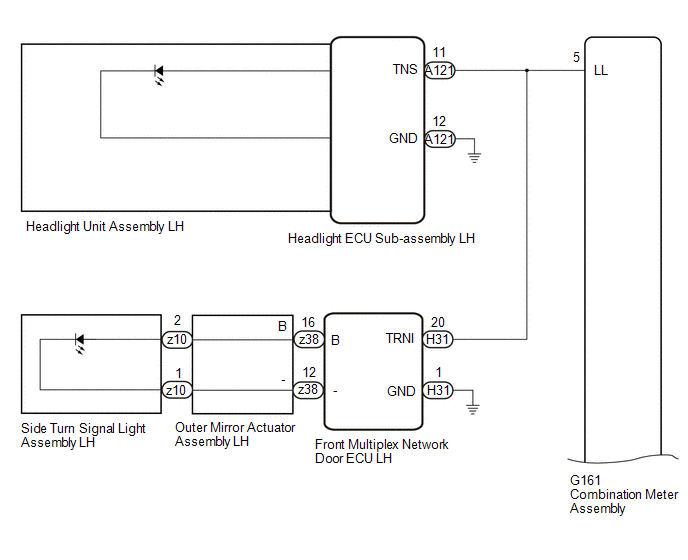

    GTY1124218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY968132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

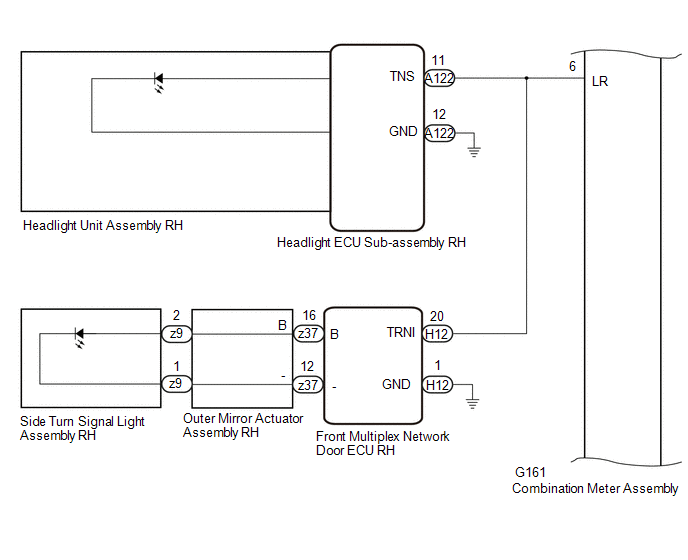

    GTY1130049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY967994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
