Trip Switch
>>
Components [10/2017 - 10/2020]
Components [10/2017 - 10/2020]

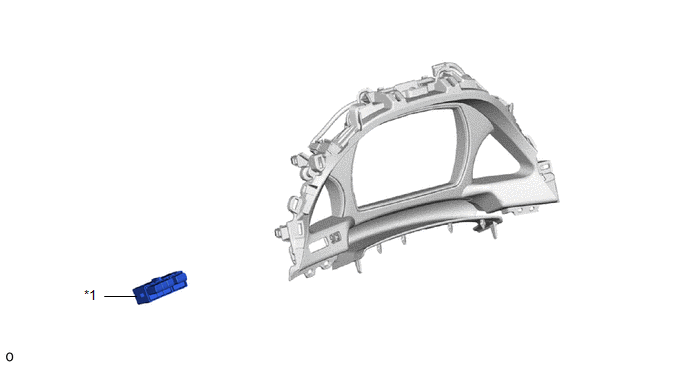

Fig 1: Trip Switch Replacement Components [10/2017 - 10/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
TRIP SWITCH
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
