Installation [10/2023 - ]: Procedure

  1. INSTALL TRIP SWITCH (LIGHT CONTROL RHEOSTAT)

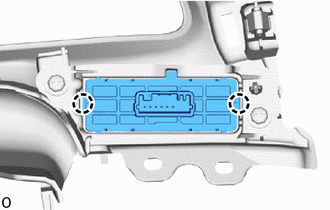

    1. GTY1234321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the claw to install the trip switch (light control rheostat).

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to INSTALLATION [10/2023 - ]
