Installation [10/2017 - 10/2023]: Procedure

  1. INSTALL TRIP SWITCH (LIGHT CONTROL RHEOSTAT)

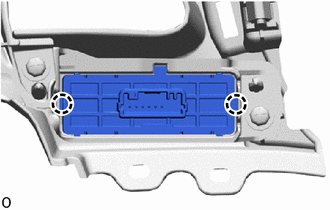

    1. GTY816260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the claw to install the trip switch (light control rheostat).

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to INSTALLATION [10/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 10/2023]
