Reassembly [10/2017 - 10/2023]: Procedure

  1. INSTALL NO. 1 COMBINATION METER MIRROR PLATE

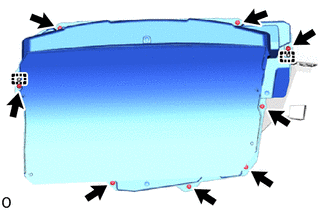

    1. GTY816255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the pin.

    2. Install the No. 1 combination meter mirror plate with the 8 screws.
