Components [10/2023 - ]

Fig 1: Headup Display Replacement Components With Torque Specifications [10/2023 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

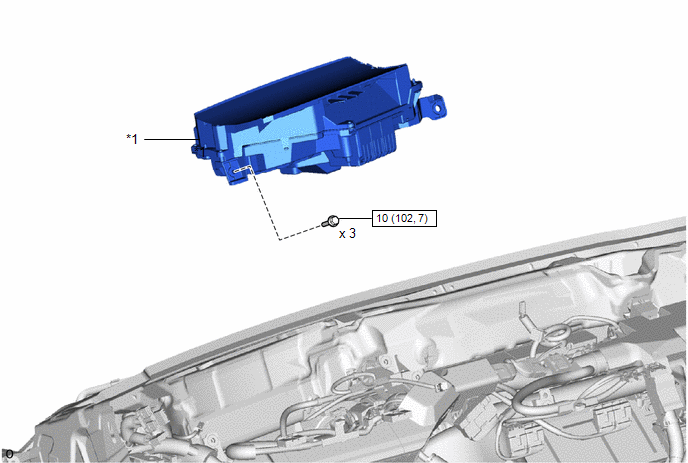

Fig 2: Headup Display Replacement Components With Torque Specifications [10/2023 - ] (2 Of 2)

Callout	Description	Callout	Description
*1	HEADUP DISPLAY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
