Components [10/2017 - 11/2021]

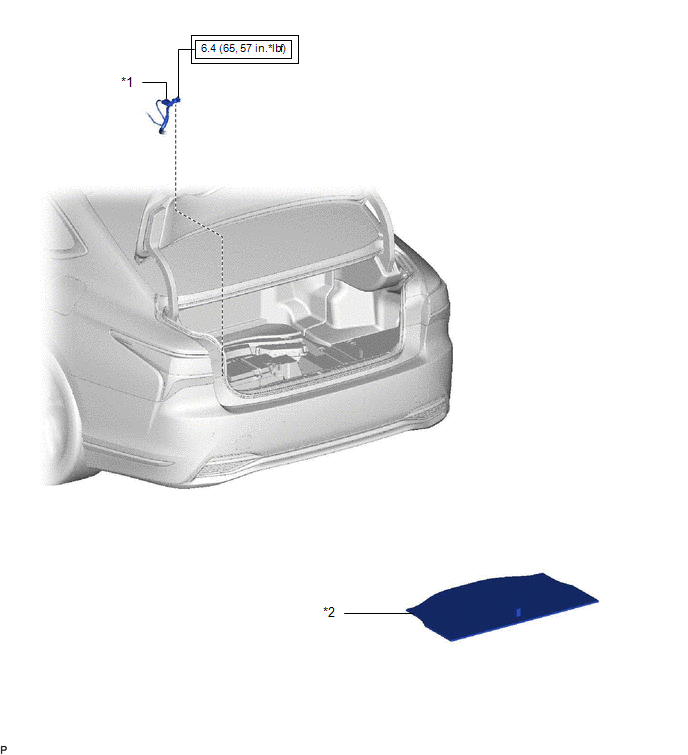

Fig 1: Headup Display Replacement Components With Torque Specifications [10/2017 - 11/2021] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

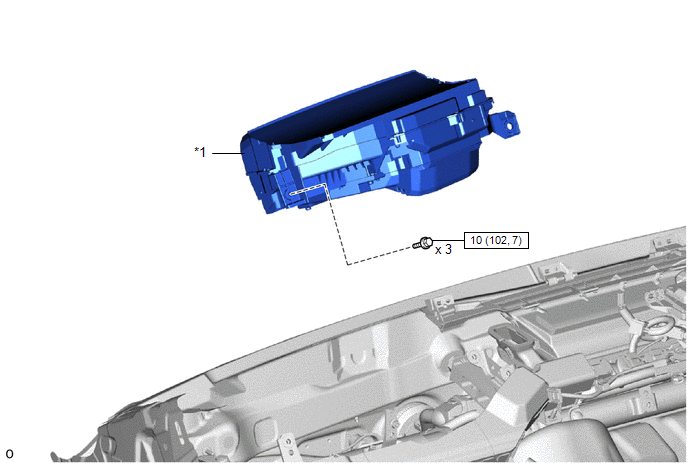

Fig 2: Headup Display Replacement Components With Torque Specifications [10/2017 - 11/2021] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HEADUP DISPLAY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

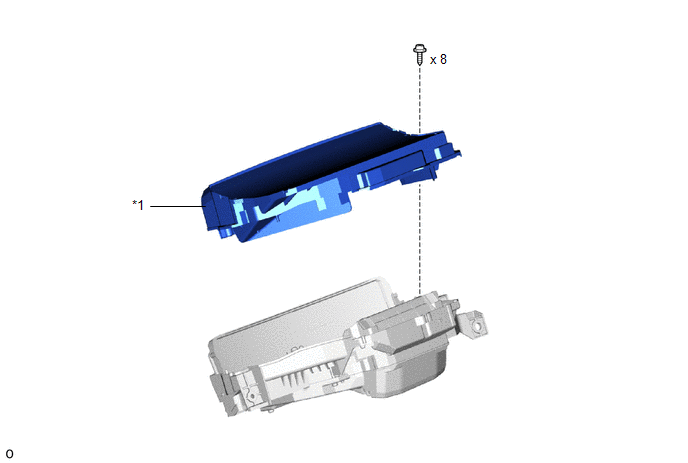

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 COMBINATION METER MIRROR PLATE | - | - |
