Inspection [10/2017 - 10/2020]: Procedure
- INSPECT HEADUP DISPLAY SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)
- Remove the headup display switch (integration control and panel assembly).
Refer to REMOVAL [10/2017 - ]

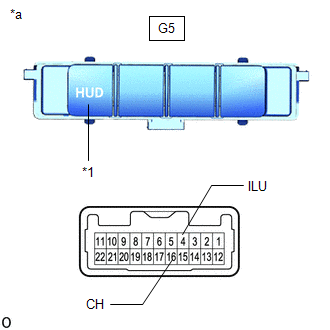

- Check the resistance.
*1 HUD Switch *a Component without harness connected
(Headup Display Switch (Integration Control and Panel Assembly)- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition G5-4 (ILU) - G5-16 (CH) HUD switch not pressed 10 kΩ or higher HUD switch pressed Below 1 Ω If the result is not as specified, replace the headup display switch (integration control and panel assembly).
- Measure the resistance according to the value(s) in the table below.
- Check illumination.
*a Component without harness connected

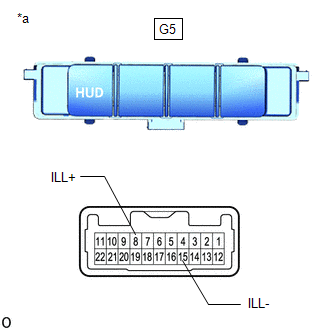

(Headup Display Switch (Integration Control and Panel Assembly)- Apply auxiliary battery voltage to the connector and check the light illumination condition.
OK
Tester Connection Specified Condition G5-8 (ILL+) - Auxiliary battery positive (+)
G5-15 (ILL-) - Auxiliary battery negative (-)Illuminates If the result is not as specified, replace the headup display switch (integration control and panel assembly).
- Apply auxiliary battery voltage to the connector and check the light illumination condition.
- Install the headup display switch (integration control and panel assembly).
Refer to INSTALLATION [10/2017 - ]
- Remove the headup display switch (integration control and panel assembly).
