Components [10/2017 - 10/2020]

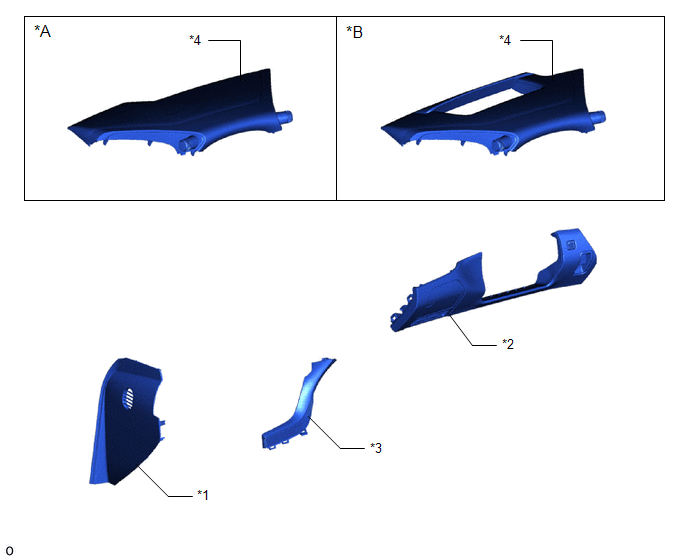

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Headup Display | *B | w/ Headup Display |
| *1 | INSTRUMENT SIDE PANEL LH | *2 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY |
| *3 | NO. 1 INSTRUMENT PANEL SAFETY PAD | *4 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |

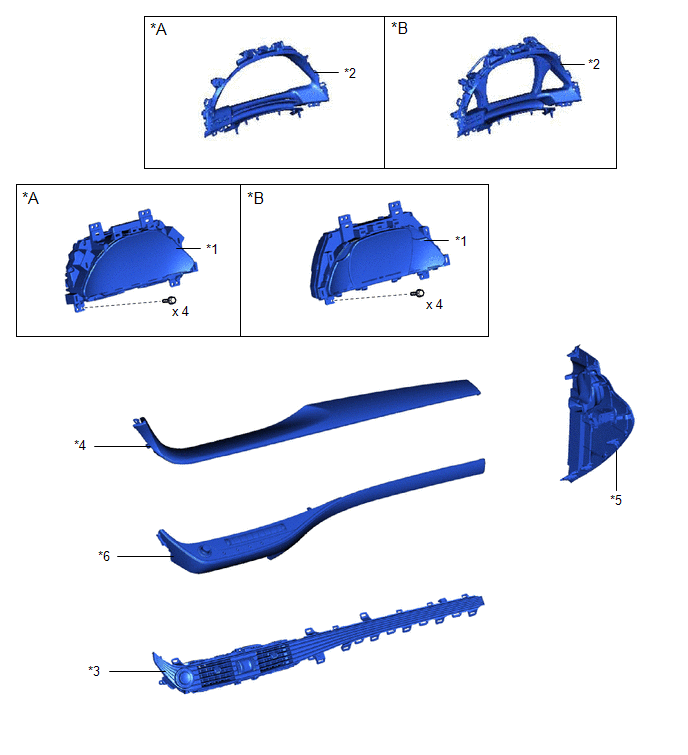

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sport Package | *B | except Sport Package |
| *1 | COMBINATION METER ASSEMBLY | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *4 | INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY |
| *5 | INSTRUMENT SIDE PANEL RH | *6 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |

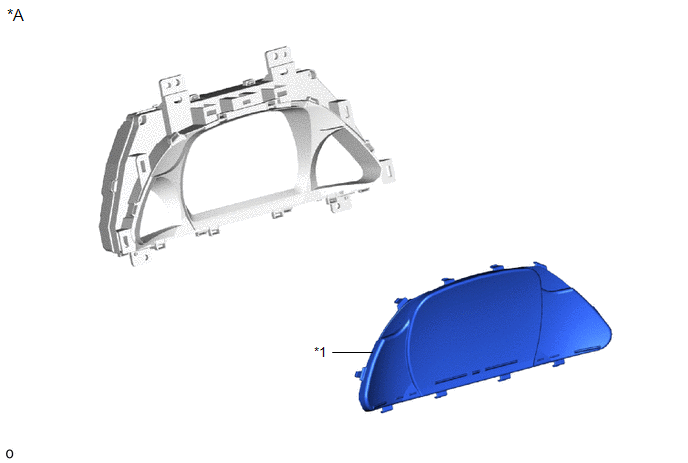

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Sport Package | - | - |
| *1 | COMBINATION METER GLASS | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sport Package | - | - |
| *1 | COMBINATION METER GLASS | - | - |
