Removal [10/2017 - 10/2020]: Procedure

REMOVE CLOCK ASSEMBLY

NOTE:

When removing the clock assembly, make sure that no dust, etc., enters the inside of the multi-display.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

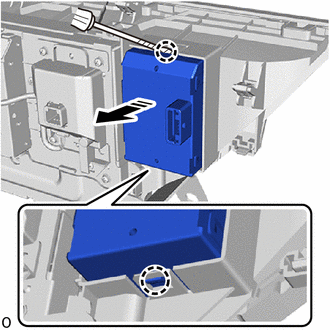

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the clock assembly.

HINT:

Tape the thin-bladed screwdriver tip before use.
