Inspection [10/2017 - 10/2020]: Procedure
- INSPECT CLOCK ASSEMBLY
- Check illumination.
Apply auxiliary battery voltage to the clock assembly and check that it illuminates.

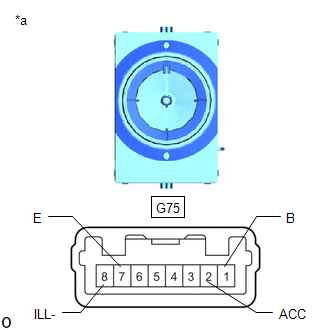

*a Component without harness connected
(Clock Assembly)OK
Tester Connection Specified Condition G75-1 (B) - Auxiliary battery positive (+)
G75-2 (ACC) - Auxiliary battery positive (+)
G75-7 (E) - Auxiliary battery negative (-)
G75-8 (ILL-) - Auxiliary battery negative (-)Illuminates If the result is not as specified, replace the clock assembly.
- Check illumination.
