Removal [12/2017 - ]: Procedure

  1. REMOVE NO. 2 COOLER THERMISTOR
    1. Detach the claw and guide in the direction indicated by the arrow shown in the illustration and remove the cover.

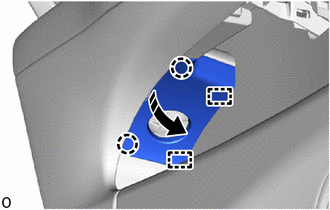

      GTY803180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the claw and guide and disconnect the cooler thermistor (No. 2 room temperature sensor) from the rear door trim.

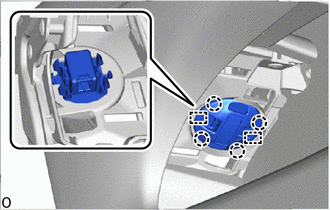

      GTY803310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector and remove the cooler thermistor (No. 2 room temperature sensor).

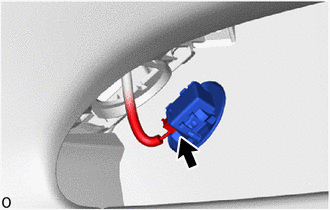

      GTY803311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
