Removal [12/2017 - ]: Procedure

REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

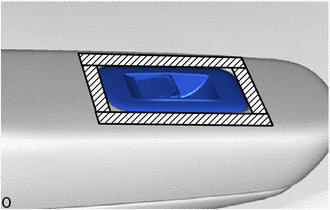

Apply protective tape to the rear door armrest assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

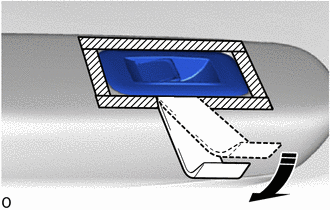

Raise the rear power window regulator switch assembly using the moulding remover D as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Move in this Direction

NOTE:

Do not damage the armrest.

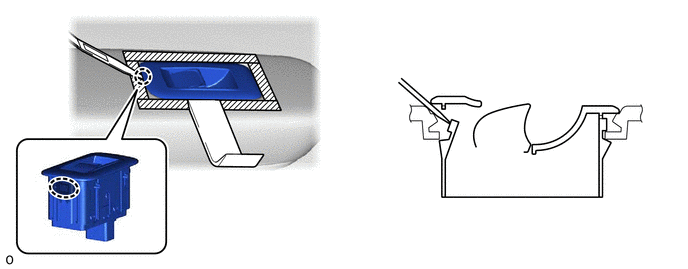

While holding the moulding remover D, detach the claw using the moulding remover E as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Insert Moulding Remover E Here

NOTE:

Do not damage the armrest.

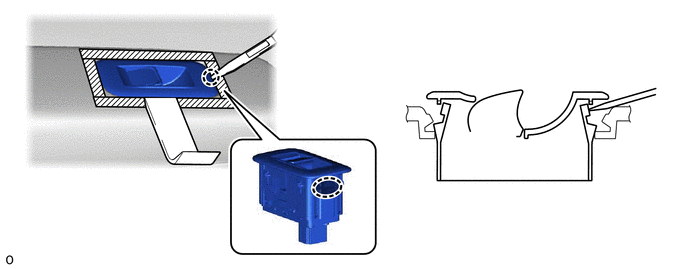

While holding the moulding remover D, detach the claw using the moulding remover E as shown in the illustration.

Insert Moulding Remover E Here

NOTE:

Do not damage the armrest.

Disconnect the connector to remove the rear power window regulator switch assembly.

Using moulding remover A, detach the claw and remove the rear power window regulator switch assembly from the rear door armrest upper base panel.
