Removal [10/2020 - 10/2022]: Procedure

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

    Refer to PROCEDURE - Step 1

  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

    Refer to PROCEDURE - Step 2

  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 3

  4. REMOVE SWITCH BEZEL

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  10. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  12. REMOVE TELEVISION CAMERA ASSEMBLY WITH INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)
    1. Disconnect the camera cleaner hose.

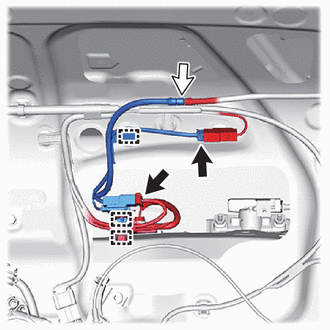

      GTY967234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Camera Cleaner Hose
    2. Using a clip remover, detach the clamp.
    3. Disconnect the 2 connectors.
    4. Detach the claw and remove the television camera assembly with inner mirror camera assembly as shown in the illustration.
      GTY967893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE TELEVISION CAMERA ASSEMBLY WITH WIRE (w/o Digital Inner Mirror)
    1. Detach the clamp.
      GTY784524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Detach the claw and remove the television camera assembly with wire as shown in the illustration.
      GTY966348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE TELEVISION CAMERA COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  15. REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 3

  16. REMOVE CAMERA CLEANER NOZZLE (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  17. REMOVE NO. 4 REAR WASHER HOSE ASSEMBLY (w/ Digital Inner Mirror)
    1. Remove the 2 screws and No. 4 rear washer hose assembly.
      GTY967231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

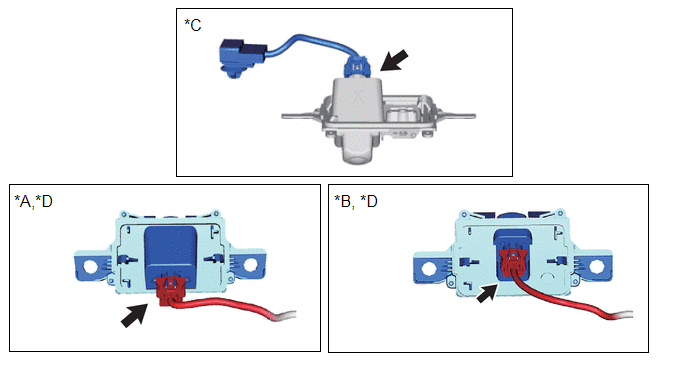

  18. REMOVE TELEVISION CAMERA WIRE
    1. Disconnect the connector and remove the television camera wire from the television camera assembly.
      GTY967442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Rear Camera Detection *B w/o Rear Camera Detection
      *C w/ Digital Inner Mirror *D w/o Digital Inner Mirror
      NOTE:
      • Do not subject the television camera to strong impacts or force, and do not drop it.
      • Do not reuse the television camera that has been dropped.
