Parts Location [10/2022 - 10/2023]: Illustration

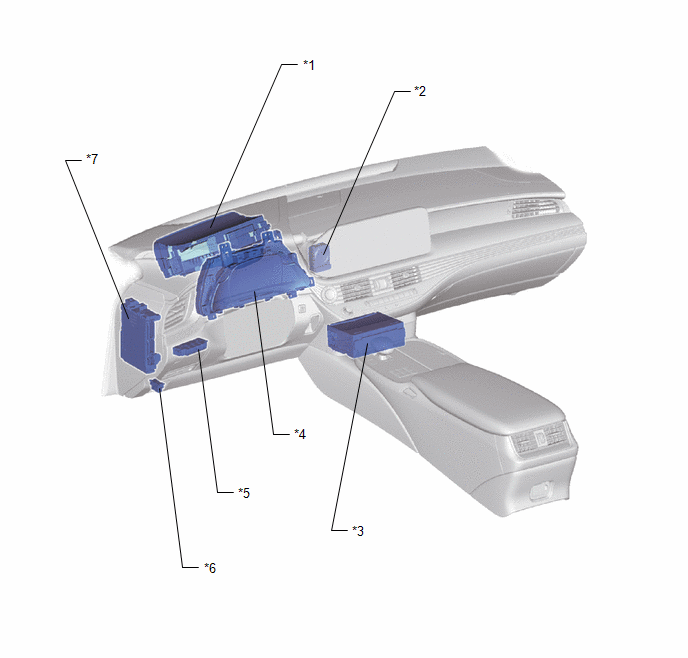

Fig 1: Headup Display System Replacement Components [10/2022 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	METER MIRROR SUB-ASSEMBLY	*2	CLOCK ASSEMBLY
*3	RADIO RECEIVER ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	INTEGRATION CONTROL AND PANEL ASSEMBLY - HEADUP DISPLAY SWITCH	*6	DLC3
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 D NO. 1 FUSE - MPX-B D NO. 1 FUSE	-	-
