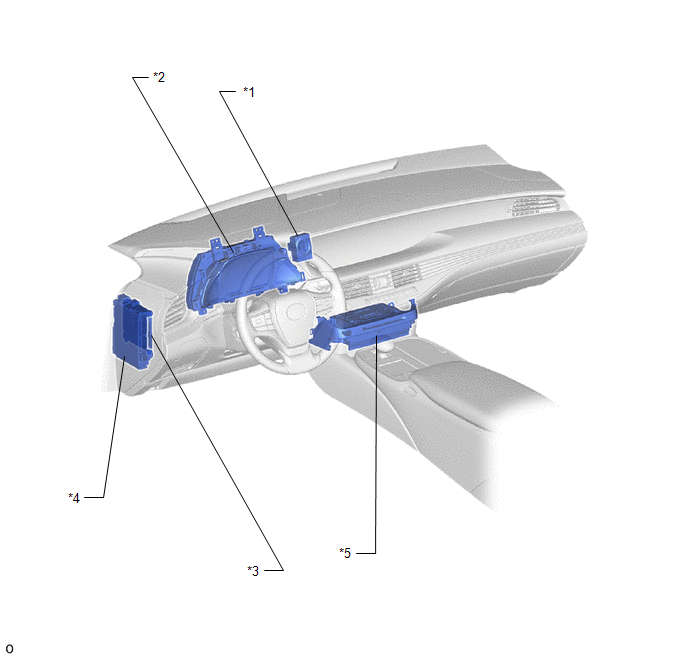

Parts Location [12/2017 - 10/2020]: Illustration

GTY801190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 DRIVER SIDE JUNCTION BLOCK ASSEMBLY
- MPX-B D NO. 1 FUSE
- ACC D FUSE
*5 RADIO RECEIVER ASSEMBLY - -
