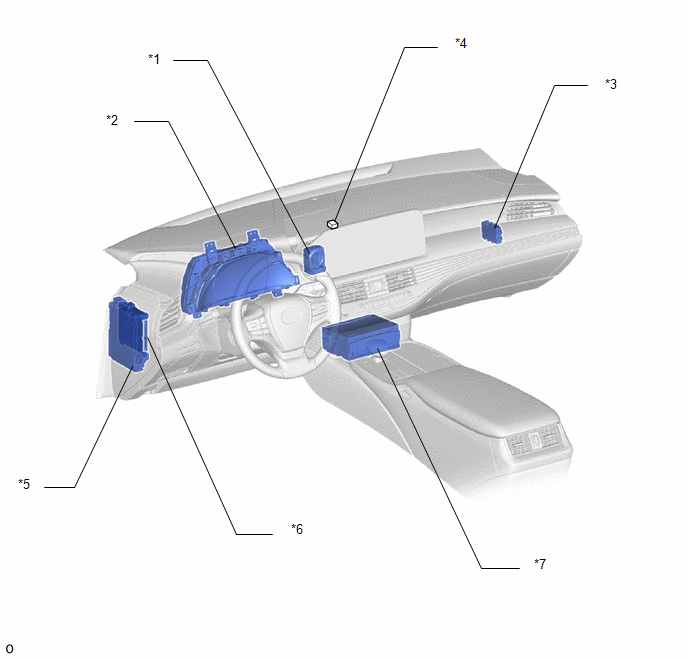

| *1 |
CLOCK ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
*4 |
NO. 54 CAN JUNCTION CONNECTOR |
| *5 |
POWER DISTRIBUTION BOX ASSEMBLY
- ECU-DCC NO. 3 FUSE
- ECU-IGR NO. 2 FUSE
- ECU-ACC FUSE |
*6 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 |
RADIO RECEIVER ASSEMBLY |
- |
- |
