Parts Location [10/2022 - 10/2023]: Illustration

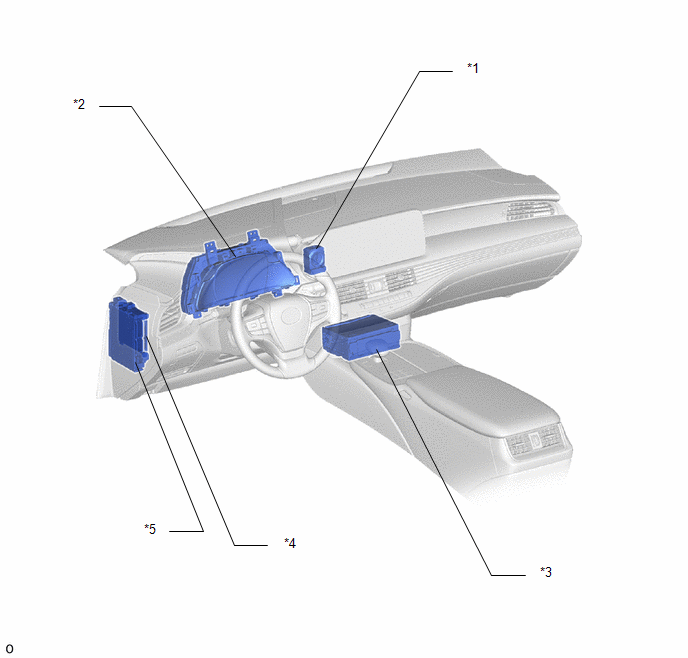

GTY1128130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 RADIO RECEIVER ASSEMBLY *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5 DRIVER SIDE JUNCTION BLOCK ASSEMBLY
- MPX-B D NO. 2 FUSE
- ACC D FUSE		 - -
