Parts Location [10/2020 - 10/2023]: Illustration

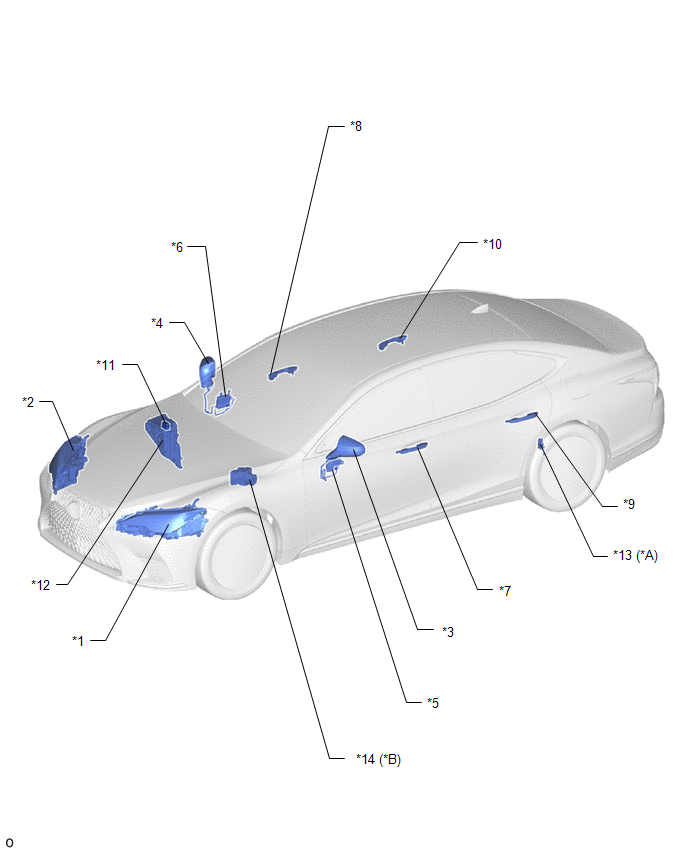

Fig 1: Lighting System Replacement Components (1 Of 3) [10/2020 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Adaptive Variable Suspension System	*B	w/ Vacuum Brake Booster
*1	HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH	*2	HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH
*3	OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*4	OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*5	FRONT MULTIPLEX NETWORK DOOR ECU LH	*6	FRONT MULTIPLEX NETWORK DOOR ECU RH
*7	FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY LH	*8	FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY RH
*9	REAR DOOR OUTSIDE HANDLE SUB-ASSEMBLY LH	*10	REAR DOOR OUTSIDE HANDLE SUB-ASSEMBLY RH
*11	NO. 1 SEMICONDUCTOR POWER INTEGRATION ECU	*12	NO. 1 ENGINE ROOM RELAY BLOCK - R/B-IG1 NO. 1 FUSE - R/B-IG1 NO. 2 FUSE
*13	REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH	*14	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU

Fig 1: Lighting System Replacement Components (2 Of 3) [10/2020 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER STOP LIGHT ASSEMBLY	*2	CENTER STOP LIGHT WIRE
*3	LICENSE PLATE LIGHT ASSEMBLY LH	*4	LICENSE PLATE LIGHT ASSEMBLY RH
*5	REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT LED LH	*6	REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT LED RH
*7	REAR LIGHT ASSEMBLY LH - REAR LIGHT LENS AND BODY LH - REAR LIGHT LED LH	*8	REAR LIGHT ASSEMBLY RH - REAR LIGHT LENS AND BODY RH - REAR LIGHT LED RH
*9	NO. 3 SEMICONDUCTOR POWER INTEGRATION ECU	-	-

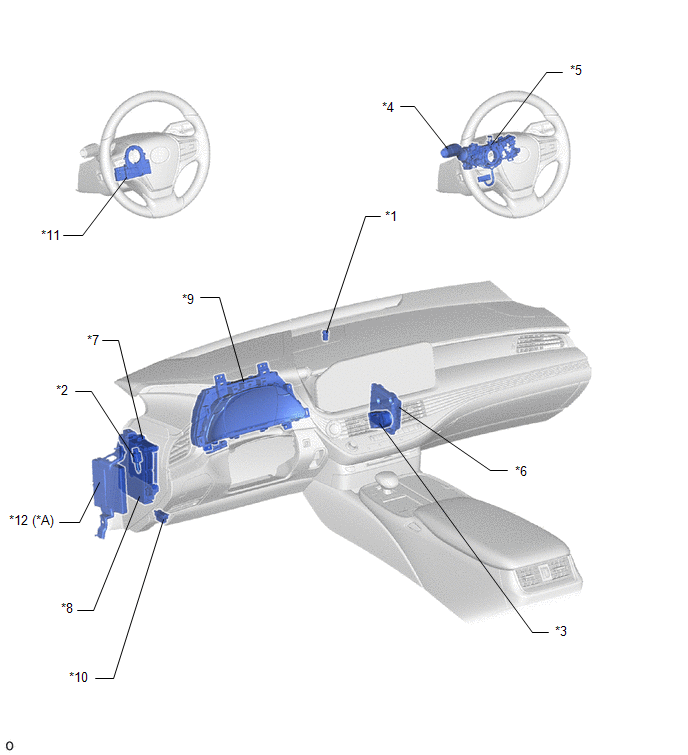

Fig 1: Lighting System Replacement Components (3 Of 3) [10/2020 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Vacuum Brake Booster	-	-
*1	AUTOMATIC LIGHT CONTROL SENSOR	*2	STOP LIGHT SWITCH ASSEMBLY
*3	HAZARD WARNING SIGNAL SWITCH ASSEMBLY	*4	TURN SIGNAL SWITCH - DIMMER SWITCH - LIGHT CONTROL SWITCH
*5	STEERING WHEEL SWITCH HOUSING	*6	SHIFT CONTROL ECU
*7	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC D RELAY - IG1 D NO. 1 RELAY - IG1 D NO. 2 RELAY - ACC D FUSE - IG1 D NO. 4 FUSE - ECU-B D NO. 1 FUSE - IG2 D NO. 1 FUSE - METER FUSE - HAZ FUSE
*9	COMBINATION METER ASSEMBLY	*10	DLC3
*11	STEERING SENSOR	*12	SKID CONTROL ECU ASSEMBLY
