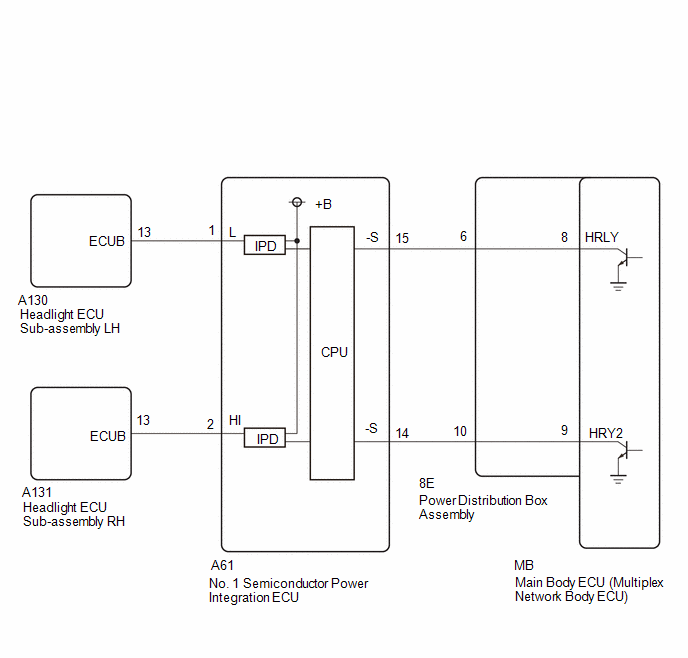

DTC B242F-14: ECUB Circuit Short to Ground or Open [10/2023 - ]: Wiring Diagram

GTY1231751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
