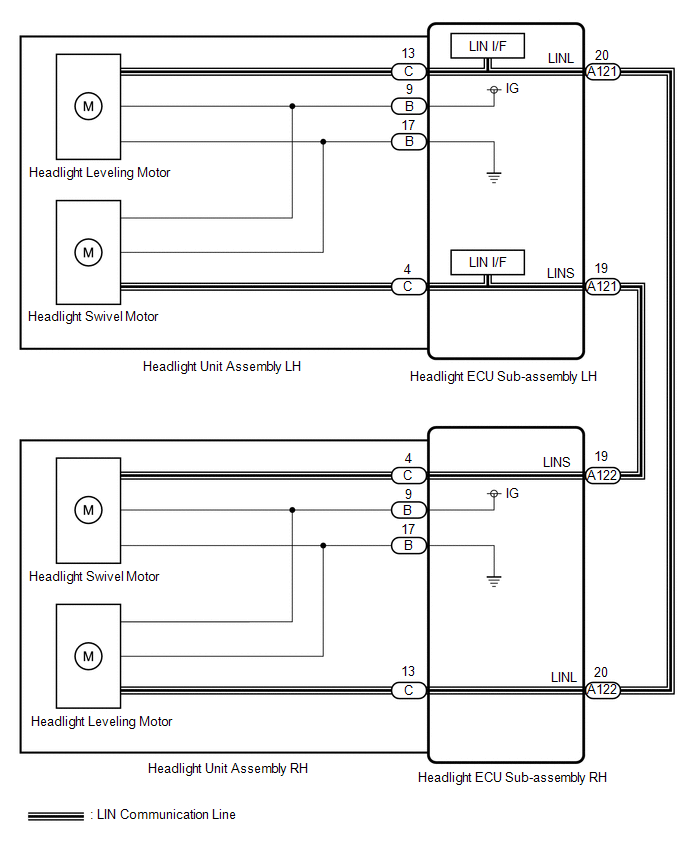

DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication; DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [10/2022 - 10/2023]: Wiring Diagram

GTY1127963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
