Back-up Light Circuit [10/2023 - ]: Wiring Diagram

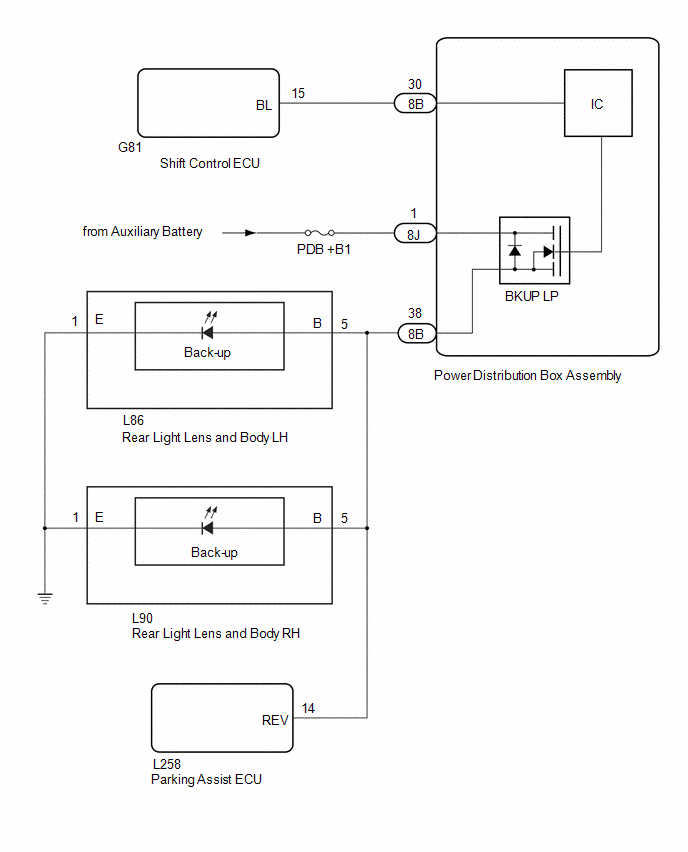

Fig 1: Back-up Light Circuit [10/2023 - ]

GTY1233840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
