DTC B15C4-64: Airbag Signal Signal Plausibility Failure [10/2022 - ]: Procedure
- CHECK DTC (AIRBAG SYSTEM)
Pre-procedure1
- Turn the ignition switch to ON and wait for 10 seconds.
Procedure1
- Check the DTC of "AIRBAG SYSTEM".
Refer to DTC CHECK / CLEAR [12/2017 - 10/2023] , or refer to DTC CHECK / CLEAR [10/2023 - ]
Result
Result Proceed to DTCs are not output A DTCs are output B Post-procedure1
- None
Result:
B
GO TO AIRBAG SYSTEM. Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2021 - 10/2023] , or refer to DIAGNOSTIC TROUBLE CODE CHART [10/2023 - ]
Result:
A
See step 2
- Turn the ignition switch to ON and wait for 10 seconds.
- CLEAR DTC
Pre-procedure1
- Turn the ignition switch to ON and wait for 10 seconds or more.
Procedure1
- Clear the DTCs.
Body Electrical > Telematics > Clear DTCs
Result
Proceed to NEXT Post-procedure1
- None
Result:
NEXT
See step 3
- Turn the ignition switch to ON and wait for 10 seconds or more.
- CHECK FOR DTC
- Check for DTCs.
Body Electrical > Telematics > Trouble Codes
Result
Result Proceed to B15C4-64 is not output A B15C4-64 is output B
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 10/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
Result:
B
See step 4
- Check for DTCs.
- CHECK DCM (TELEMATICS TRANSCEIVER) (GSW SIGNAL)
Pre-procedure1
- Remove the DCM (telematics transceiver) but do not disconnect the connectors.

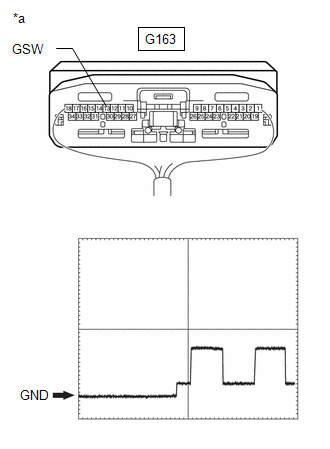

*a Component with harness connected
(DCM [Telematics Transceiver])Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Procedure1
- Check the input waveform.
- Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the DCM (telematics transceiver) while the airbag ECU assembly connectors are connected.)
Reference Waveform
Item Condition Tester connection G163-13 (GSW) - Body ground Tool setting 5.0 V/DIV., 20 ms/DIV. Vehicle condition Ignition switch ON OK
The waveform is similar to that shown in the illustration.
Result
Proceed to OK NG
Post-procedure1
- Check the signal waveform according to the condition(s) in the table below. (Check the waveform from the back of the wire harness connector of the DCM (telematics transceiver) while the airbag ECU assembly connectors are connected.)
- None
Result:
NG
See step 6
Result:
OK
See step 5
- Remove the DCM (telematics transceiver) but do not disconnect the connectors.
- REPLACE DCM (TELEMATICS TRANSCEIVER)
- Replace the DCM (telematics transceiver).
Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
NOTE:- The ignition switch must be off.
- Do not exchange the DCM (telematics transceiver) with one from another vehicle.
Result
Proceed to NEXT
Result:
NEXT
PERFORM DCM ACTIVATION. Refer to DCM ACTIVATION [10/2022 - ]
- Replace the DCM (telematics transceiver).
- CHECK HARNESS AND CONNECTOR (DCM [TELEMATICS TRANSCEIVER] - AIRBAG ECU ASSEMBLY)
Pre-procedure1
- Disconnect the G163 DCM (telematics transceiver) connector.
- Disconnect the G11 airbag ECU assembly connector.
Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G163-13 (GSW) - G11-23 (GSW3) Always Below 1 Ω G163-13 (GSW) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG Post-procedure1
- None
Result:
OK
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
