Parts Location [10/2022 - ]: Illustration

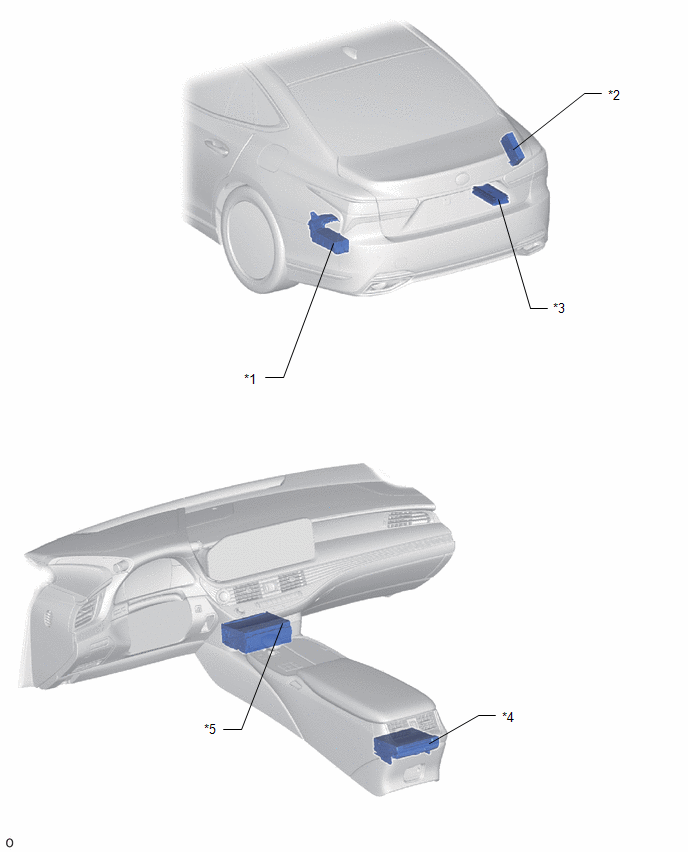

Fig 1: Rear Seat Entertainment System Replacement Components (1 Of 2) [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 LUGGAGE ROOM RELAY BLOCK - RSE NO. 1 FUSE - RSE NO. 2 FUSE - LUG-ACC NO. 1 FUSE	*2	MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY
*3	STEREO COMPONENT AMPLIFIER ASSEMBLY	*4	DISC PLAYER ASSEMBLY
*5	RADIO RECEIVER ASSEMBLY	-	-

Fig 1: Rear Seat Entertainment System Replacement Components (2 Of 2) [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TELEVISION DISPLAY ASSEMBLY LH	*2	TELEVISION DISPLAY ASSEMBLY RH
*3	REAR CENTER SEAT ARMREST ASSEMBLY - HDMI Terminal	*4	REAR POWER SEAT SWITCH (REAR MULTI OPERATION PANEL)
*5	HEADPHONE TERMINAL LH	*6	HEADPHONE TERMINAL RH
