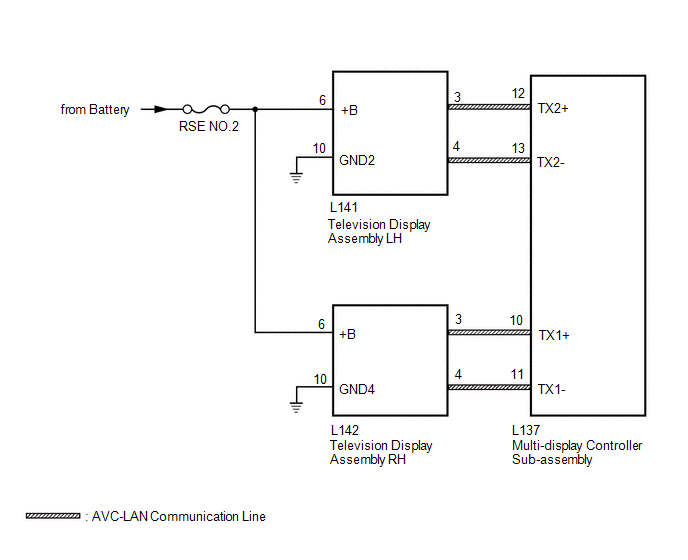

DTC B15CE: Seatback Display Disconnected [12/2017 - 10/2022]: Wiring Diagram

GTY830089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
