DTC B1533-87: GVIF (from RSE to Seatback Display RH) Missing Message; DTC B1534-87: GVIF (from RSE to Seatback Display LH) Missing Message [10/2022 - ]: Wiring Diagram

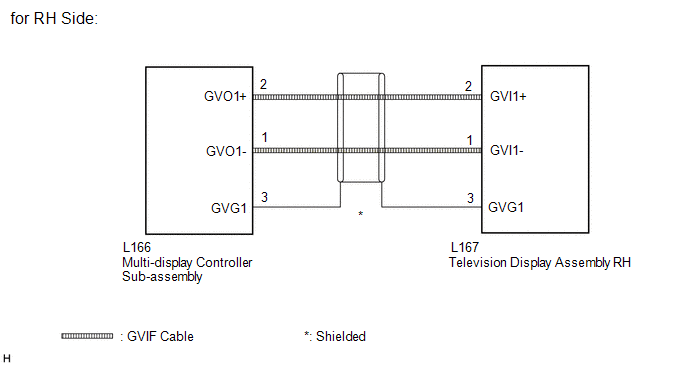

GTY1122606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

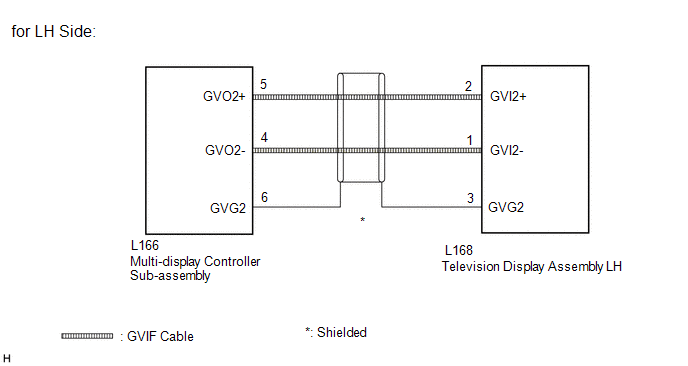

GTY1122607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
