DTC B1533: GVIF Disconnected (from RSE to Seatback Display RH); DTC B1534: GVIF Disconnected (from RSE to Seatback Display LH) [12/2017 - 10/2022]: Wiring Diagram

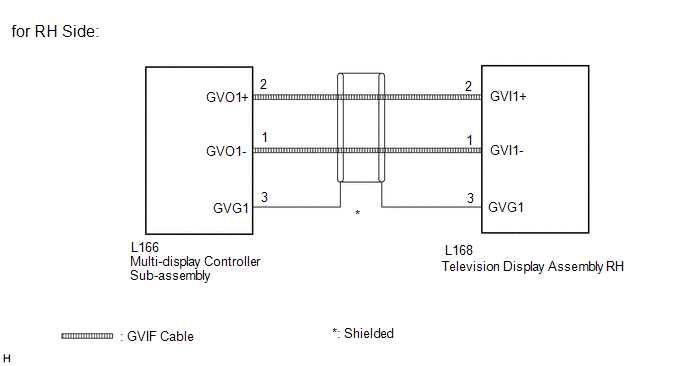

GTY801107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

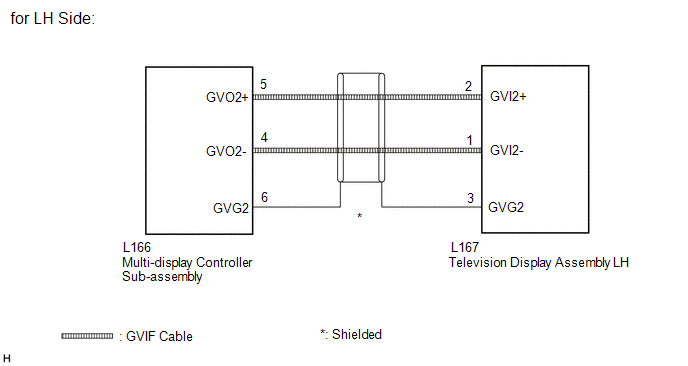

GTY832952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
