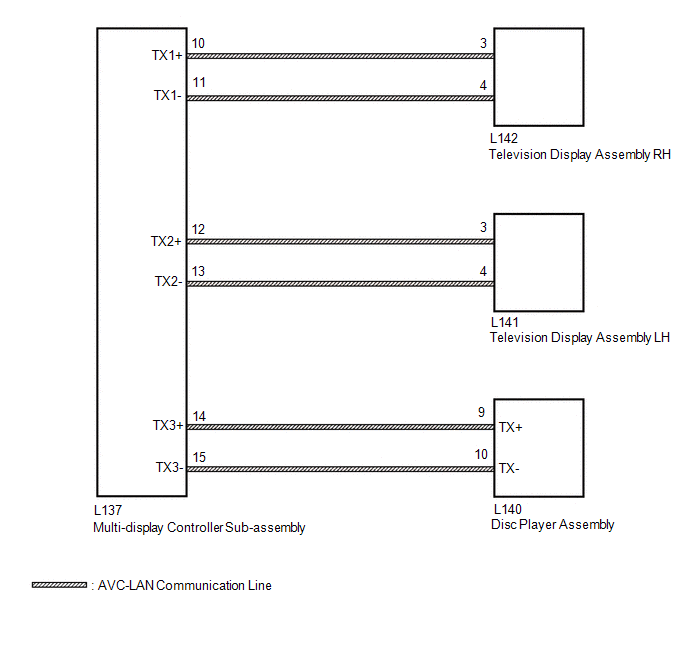

AVC-LAN Circuit [12/2017 - 10/2022]: Wiring Diagram

GTY785746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
